Beauway Aluminum Folding Hydraulic Tail Lift 1000kg
PRODUCT PARAMETERS
- Product Type: Folding Hydraulic Tail Lift
- Model Numbers: BW-PP510-105, BW-PP10-130
- Load Capacity: 1000kg
- Platform Dimensions: H1600-1800mm W1800-2500mm
- Platform Material: Aluminum Plate
- Power Supply Voltage: 12/24V
- Motor Power: 2.0 / 2.2 / 2.4kW
CERTIFICATIONS
Description
TAIL LIFT OVERVIEW
The Beauway 1000kg Aluminum Folding Hydraulic Tail Lift provides reliable vertical lifting for medium-duty cargo operations. Designed specifically for vans, light trucks, and warehouse vehicles, this foldable aluminum platform allows safe handling of heavy and fragile packages. Its adjustable dimensions ensure compatibility with multiple vehicle types, while the durable aluminum construction delivers long-term corrosion resistance and minimal maintenance. Features such as a compact foldable design and hydraulic lift system make it ideal for urban delivery and industrial transport applications.
Equipped with a 12/24V power supply and motor options of 2.0, 2.2, or 2.4kW, this hydraulic tail lift supports smooth, controlled lifting and lowering. The 1000kg aluminum hydraulic lift for vans guarantees high efficiency during frequent loading cycles. Logistics companies, retail distributors, and freight handlers benefit from the foldable industrial hydraulic platform and lightweight design that maximizes available vehicle space.
Perfect for freight handling, urban distribution, and medium-duty industrial transport, this aluminum folding hydraulic tail lift ensures consistent performance under heavy use. Keywords like “adjustable aluminum folding tail lift,” “retractable cargo lift for light trucks,” and “industrial aluminum tail lift platform” are naturally integrated to improve search visibility while keeping content readable and professional.
TECHNICAL SPECIFICATIONS
| Parameter | BW-PP10-105 | BW-PP10-130 |
|---|---|---|
| Platform Size | H1600-1800 W1800-2500 (customizable) | H1600-1800 W1800-2500 (customizable) |
| Load Capacity | 1000KG | 1000KG |
| Power Supply | 12/24V | 12/24V |
| Working Pressure | 16-18 MPa | 16-18 MPa |
| Lifting Height (mm) | 700-1000 | 950-1200 |
| Frame Model | 600 | 700 |
| Total Weight (kg) | 350KG | 350KG |

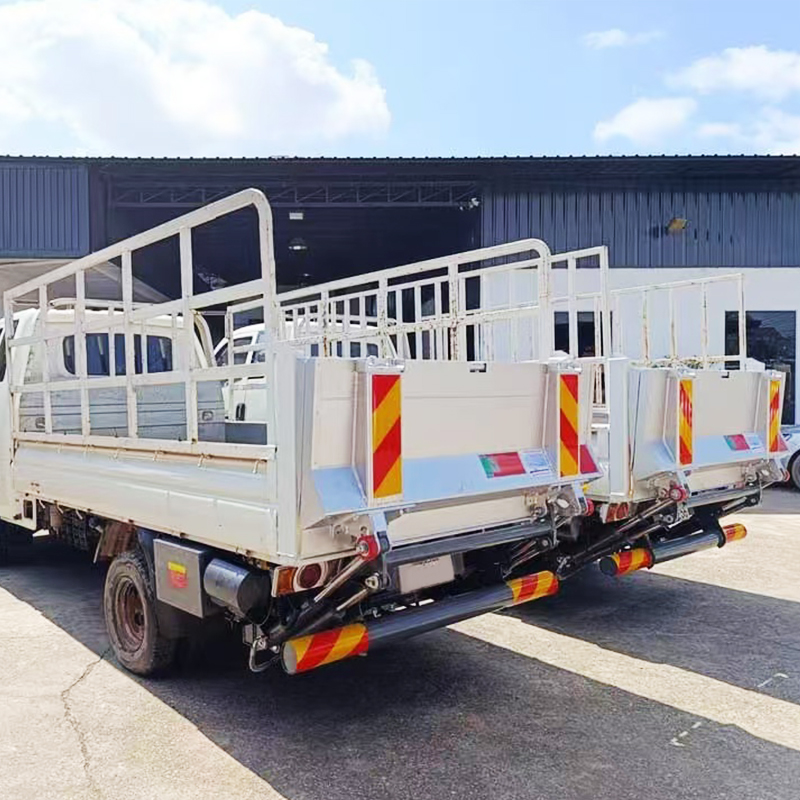

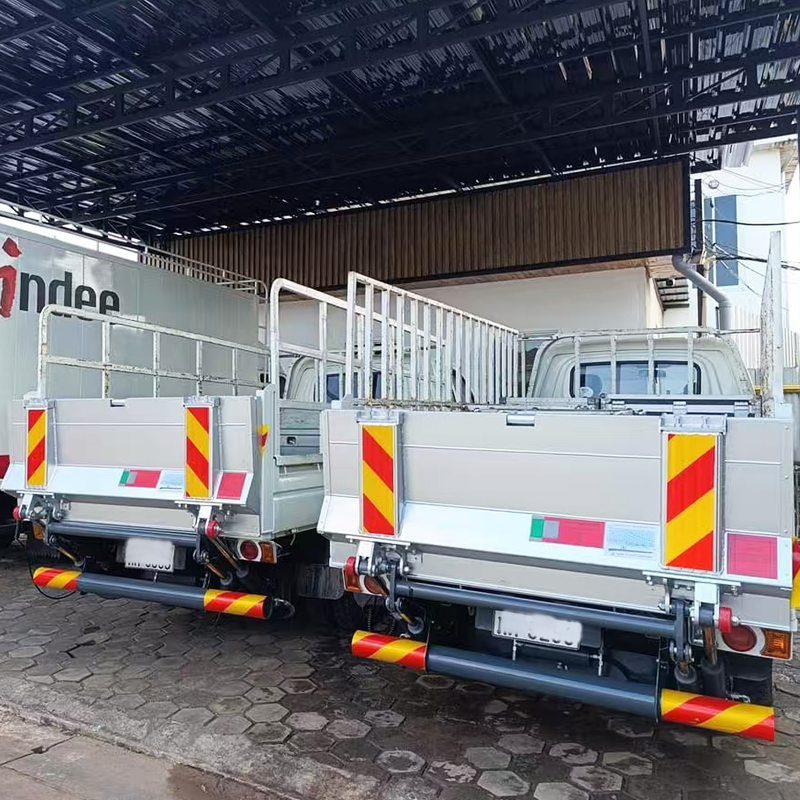

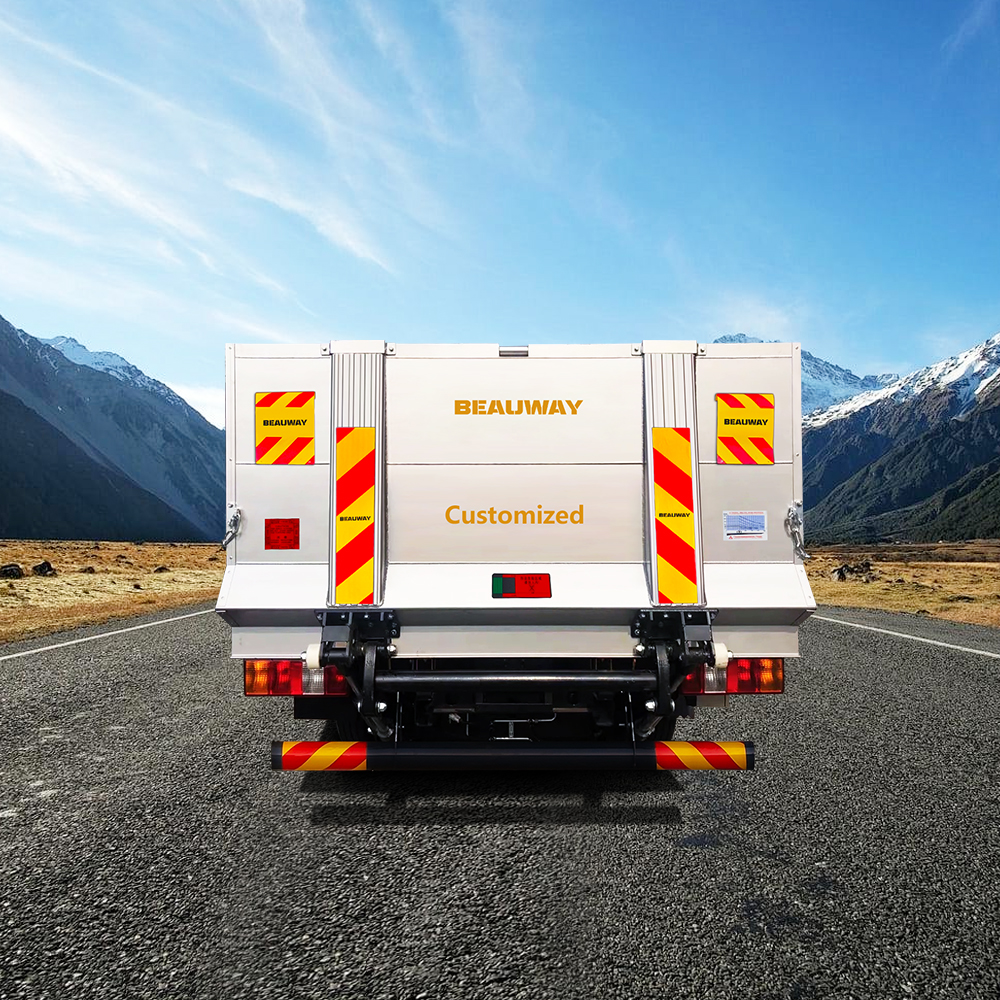

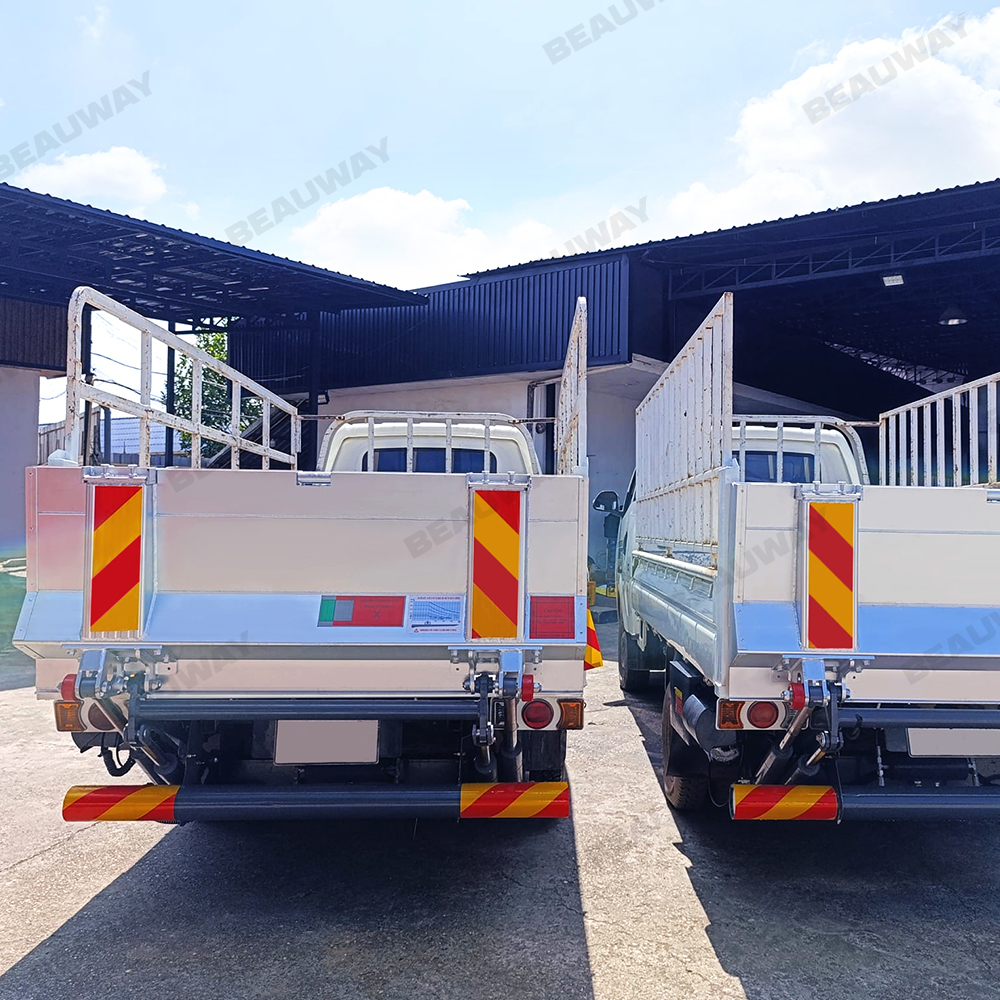

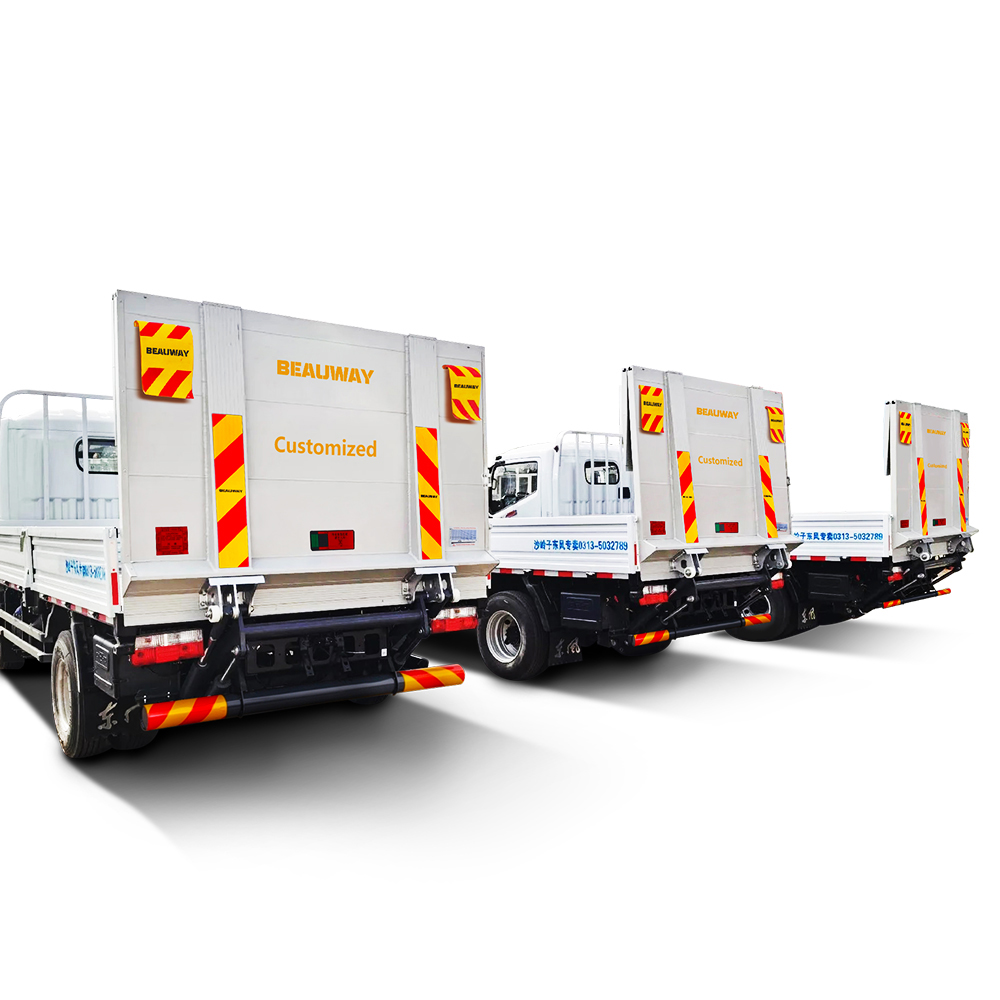

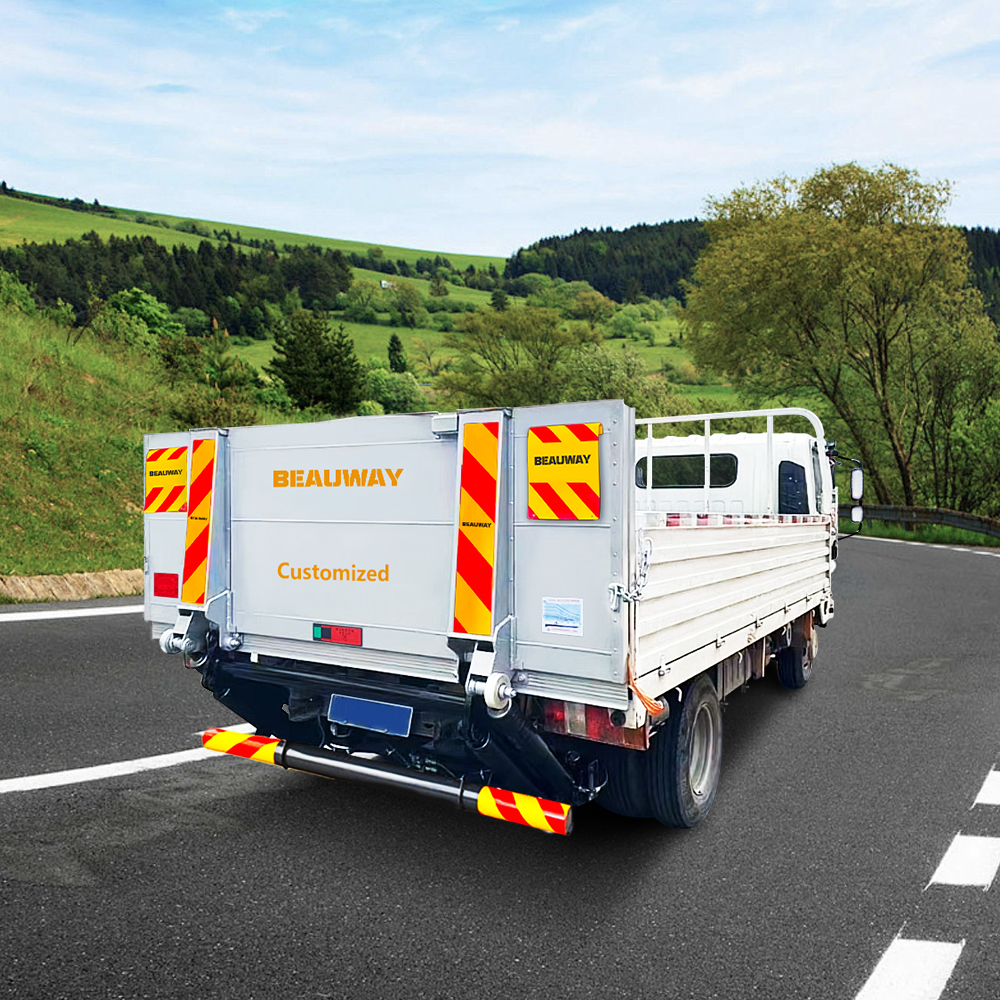

TAIL LIFT SHOWCASE
