Beauway 1500kg Steel Hydraulic Folding Tail Lift

PRODUCT PARAMETERS

  • Product Type: Hydraulic Foldable Tail Lift
  • Model Numbers: BW-PP15-110, BW-PP15-130, BW-PP15-150
  • Load Capacity: 1500kg
  • Platform Dimensions: H1600-1800mm W1800-2500mm
  • Platform Material: Steel
  • Power Supply Voltage: 12V/24V
  • Motor Power: 2.2kW / 2.4kW / 2.8kW

CERTIFICATIONS

ISO 9001
CE Certified
SGS Tested
TÜV Rheinland
Manufactured to ISO 9001 standards with CNC machining and automated welding; key models are CE certified and independently tested by SGS and TÜV Rheinland, meeting ECE, UKCA, and DOT/FMVSS requirements.
Description
FAQs
Request A Quote

Description

TAIL LIFT OVERVIEW

The Beauway 1500kg Foldable Hydraulic Tail Lift is engineered with a heavy-duty steel platform to manage substantial loads safely. Built for freight vehicles, flatbeds, and industrial handling zones, this hydraulic tail lift guarantees stable and reliable operation during repetitive cargo transfers.

Its foldable construction allows the lift to retract efficiently when not in use, reducing occupied space on transport carriers and material zones. The adjustable platform fits a variety of vehicle dimensions, enabling versatile deployment for logistics, freight distribution, and industrial loading tasks. Steel plate construction ensures durability and consistent performance under frequent usage.

Powered by 12V/24V hydraulic systems with motor capacities of 2.2kW, 2.4kW, and 2.8kW, this Foldable Hydraulic Tail Lift provides smooth, controlled lifting while minimizing manual effort. It improves operational efficiency, ensures secure cargo handling, and maintains dependable performance across intensive industrial and freight handling operations.

TECHNICAL SPECIFICATIONS

ParameterBW-PP15-110BW-PP15-130BW-PP15-150
Platform SizeH1600-1800 W1800-2500 (customizable)H1600-1800 W1800-2500 (customizable)H1600-1800 W1800-2500 (customizable)
Load Capacity1500KG1500KG1500KG
Power Supply12V/24V12V/24V12V/24V
Working Pressure16-18 MPa16-18 MPa16-18 MPa
Lifting Height (mm)850-1050950-12501200-1450
Frame Model680750880
Total Weight (kg)450KG450KG450KG

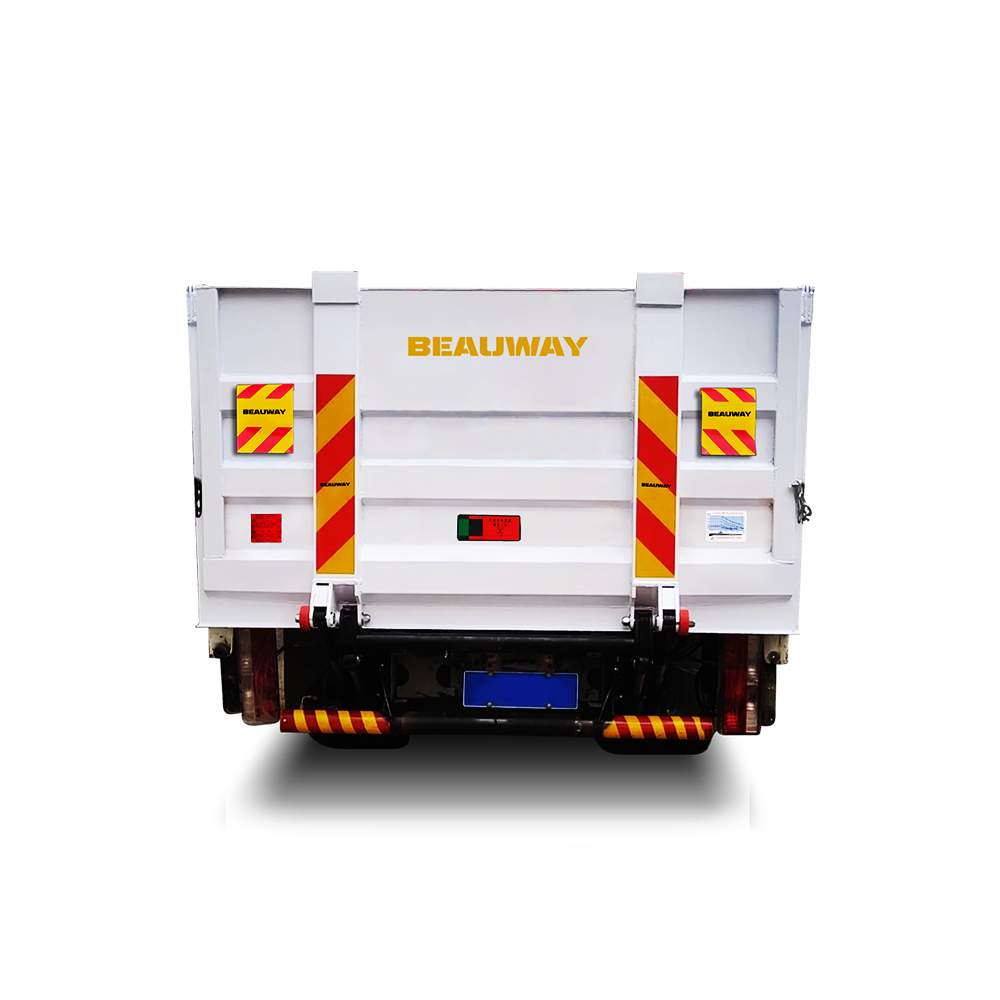

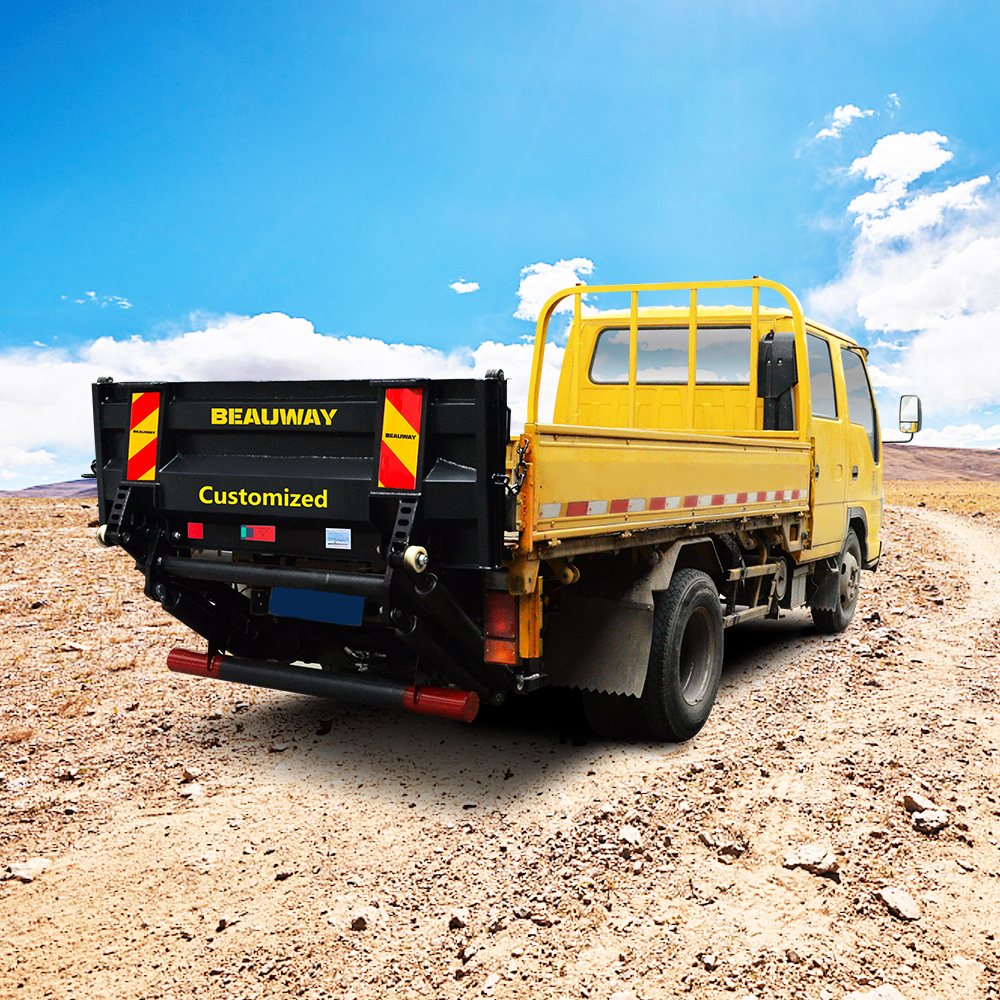

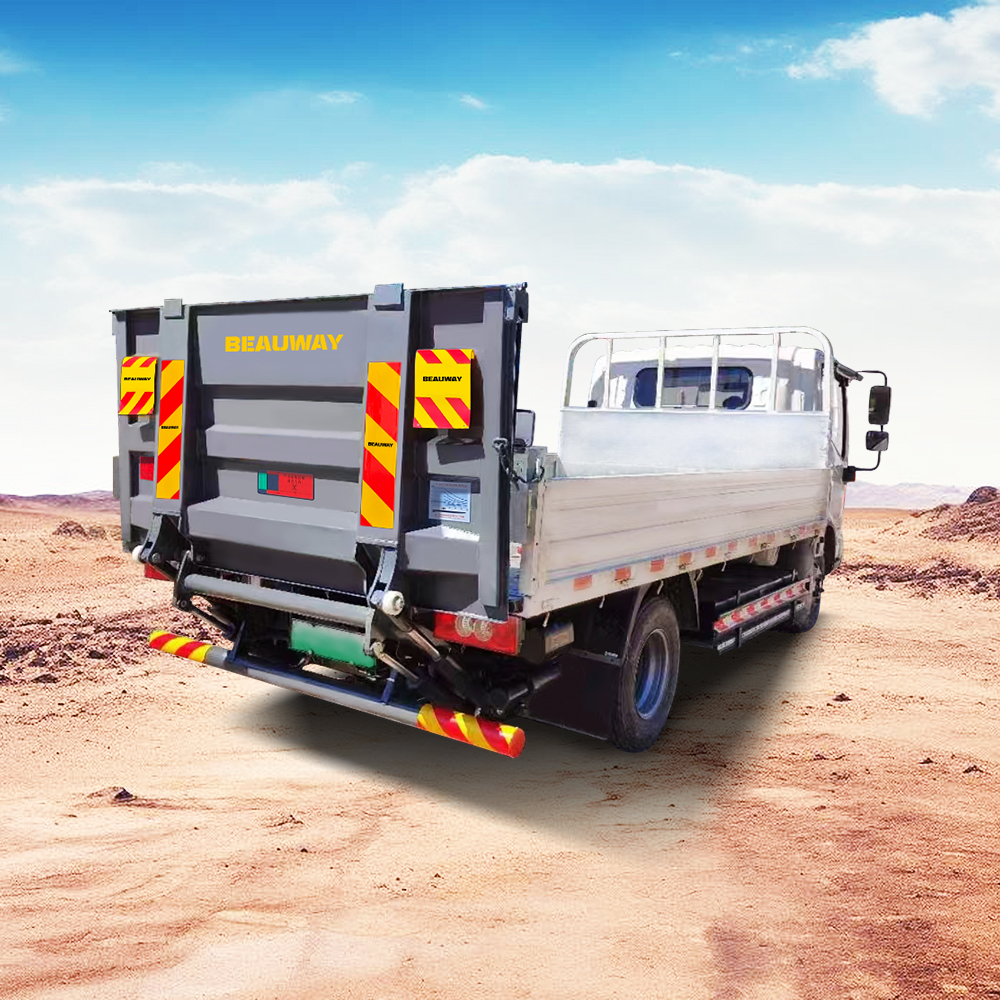

TAIL LIFT SHOWCASE

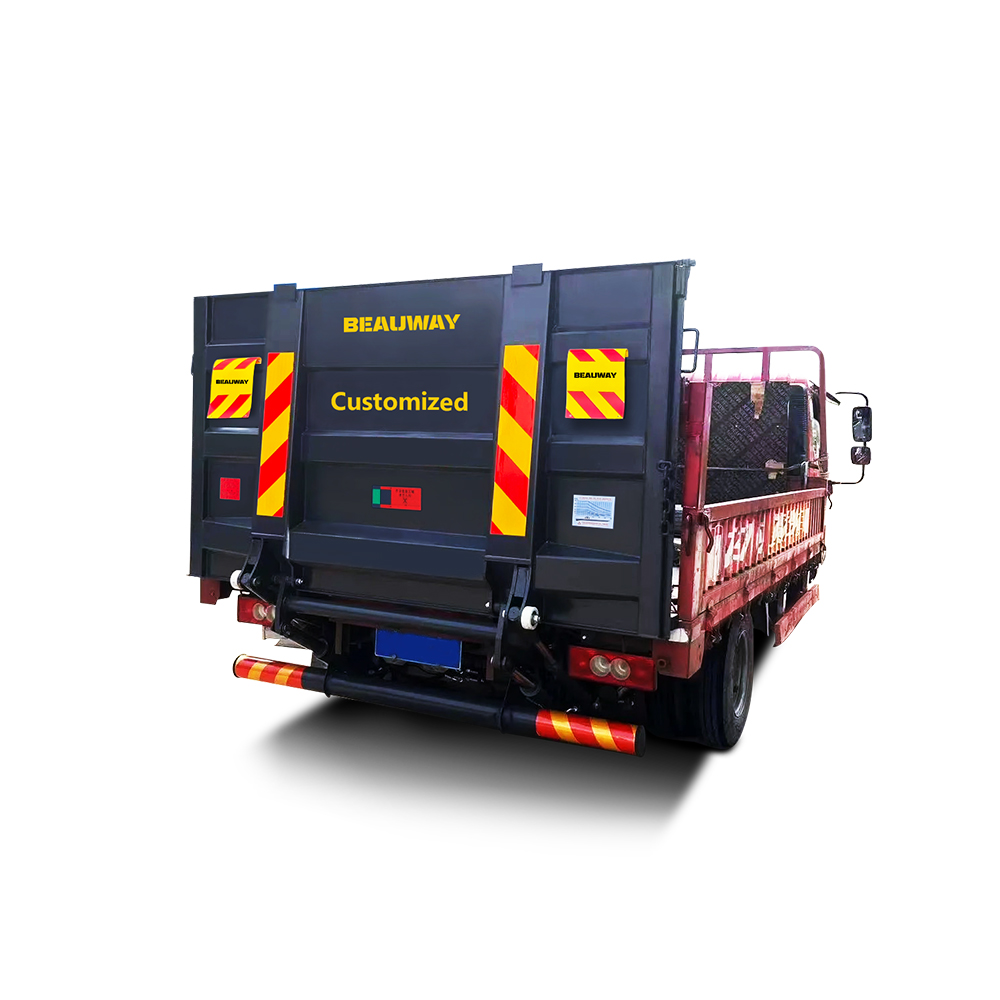

Beauway 1500kg Foldable Hydraulic Tail Lift – Heavy-Duty Steel Platform for Trucks & Loading Docks

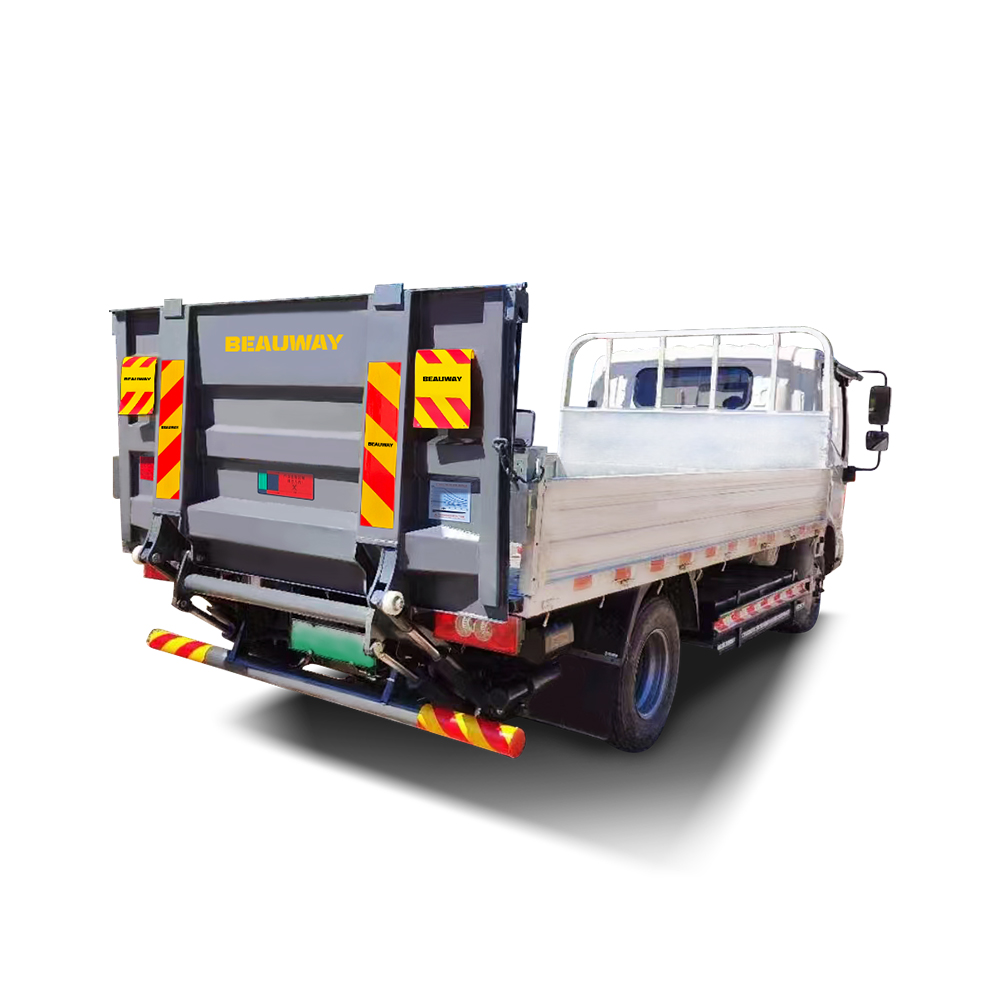

Beauway 1500kg Foldable Hydraulic Tail Lift – Heavy-Duty Steel Platform for Trucks & Loading Docks

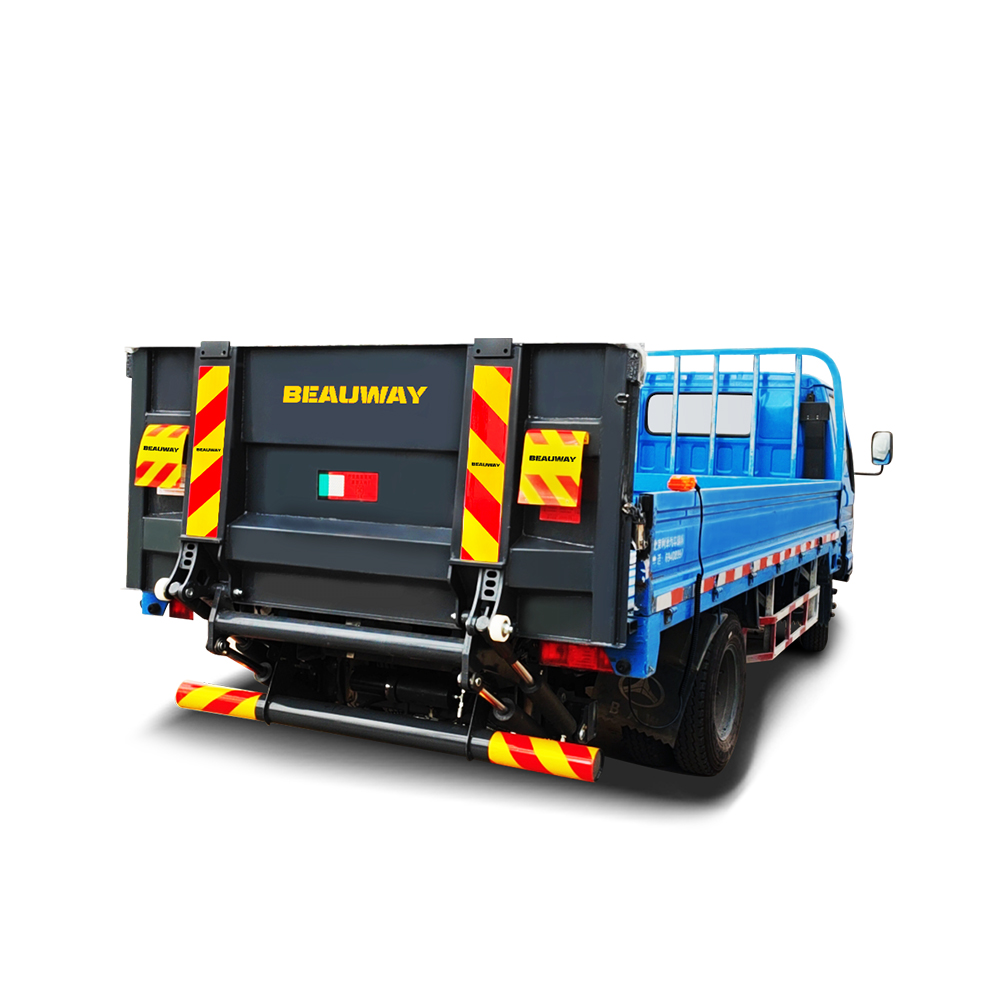

Beauway 1500kg Foldable Hydraulic Tail Lift – Heavy-Duty Steel Platform for Trucks & Loading Docks
Beauway 1500kg Foldable Hydraulic Tail Lift – Heavy-Duty Steel Platform for Trucks & Loading Docks
Beauway 1500kg Foldable Hydraulic Tail Lift – Heavy-Duty Steel Platform for Trucks & Loading Docks
