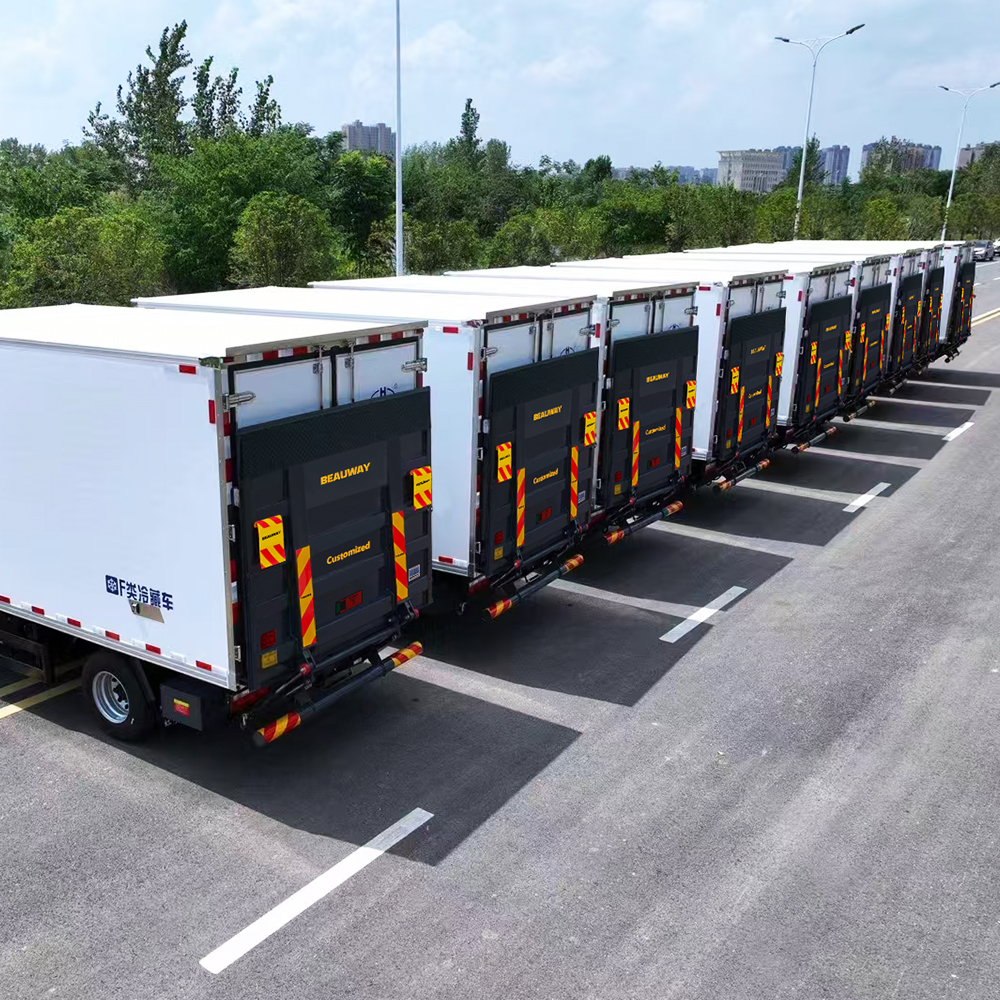

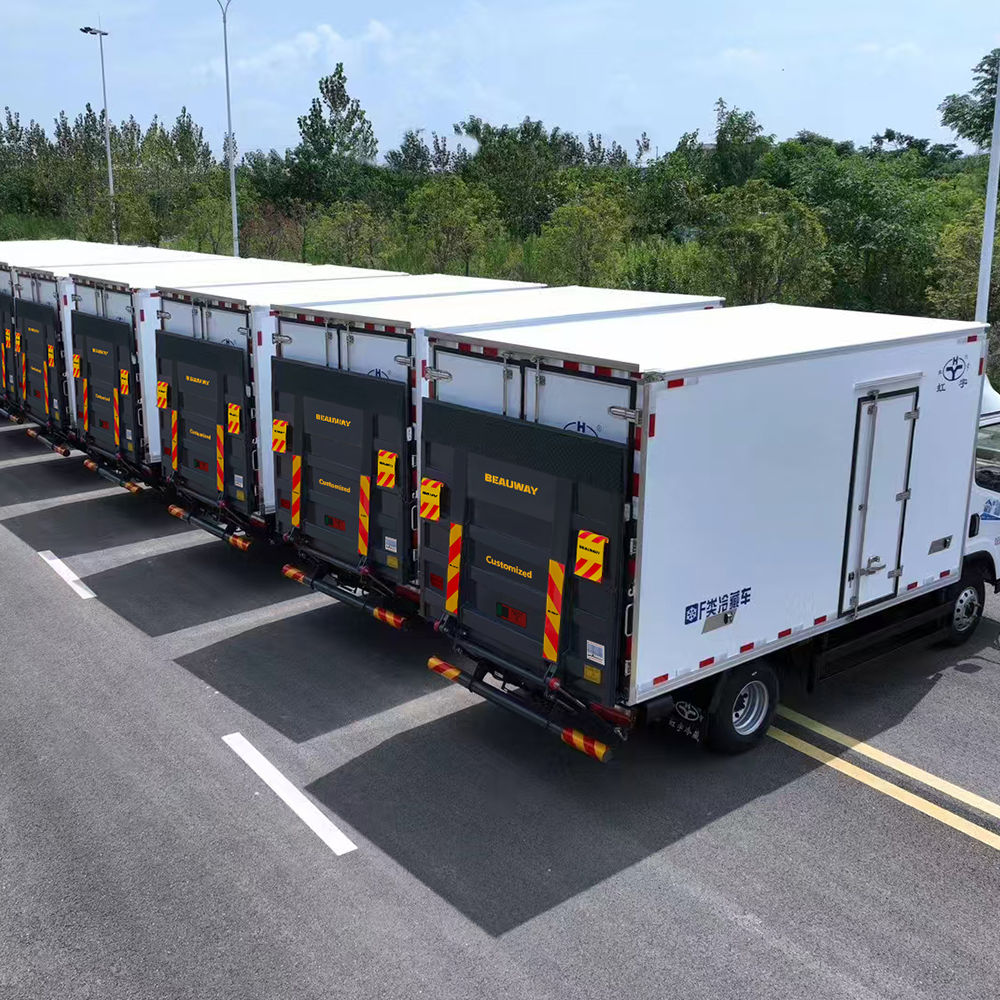

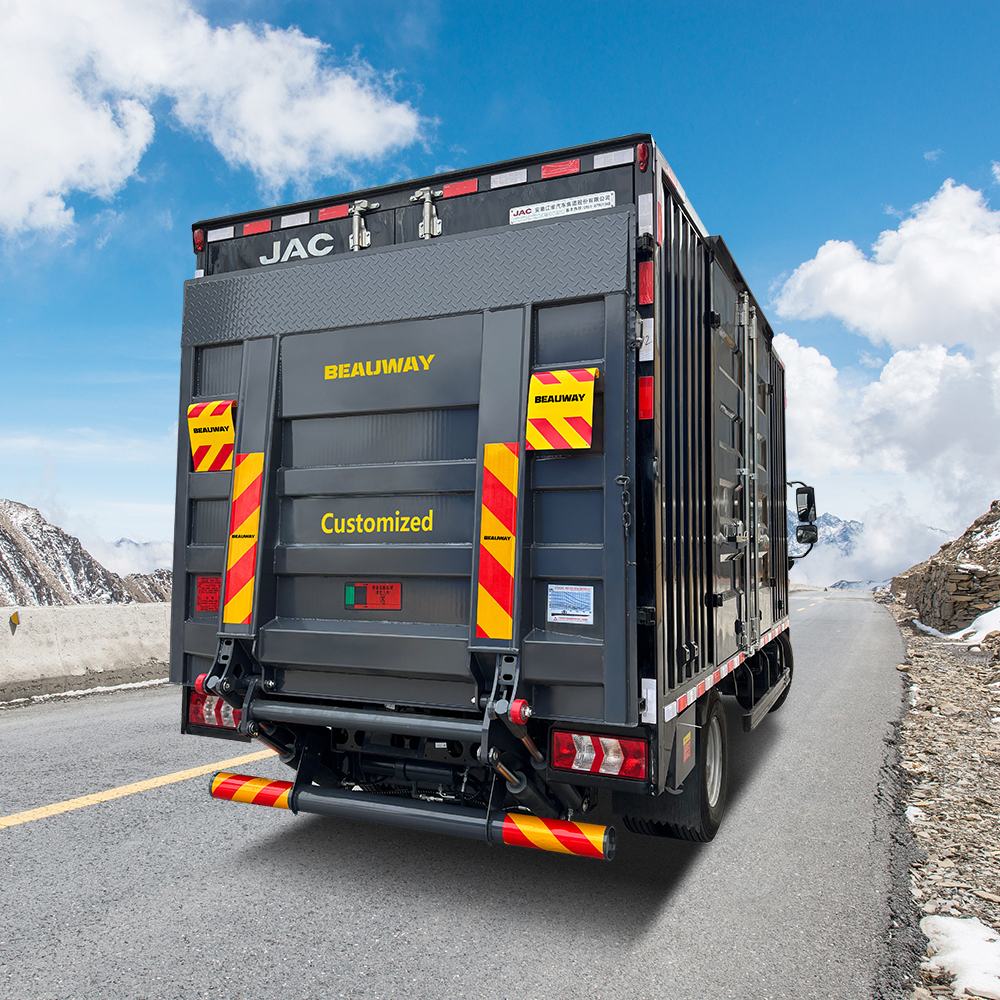

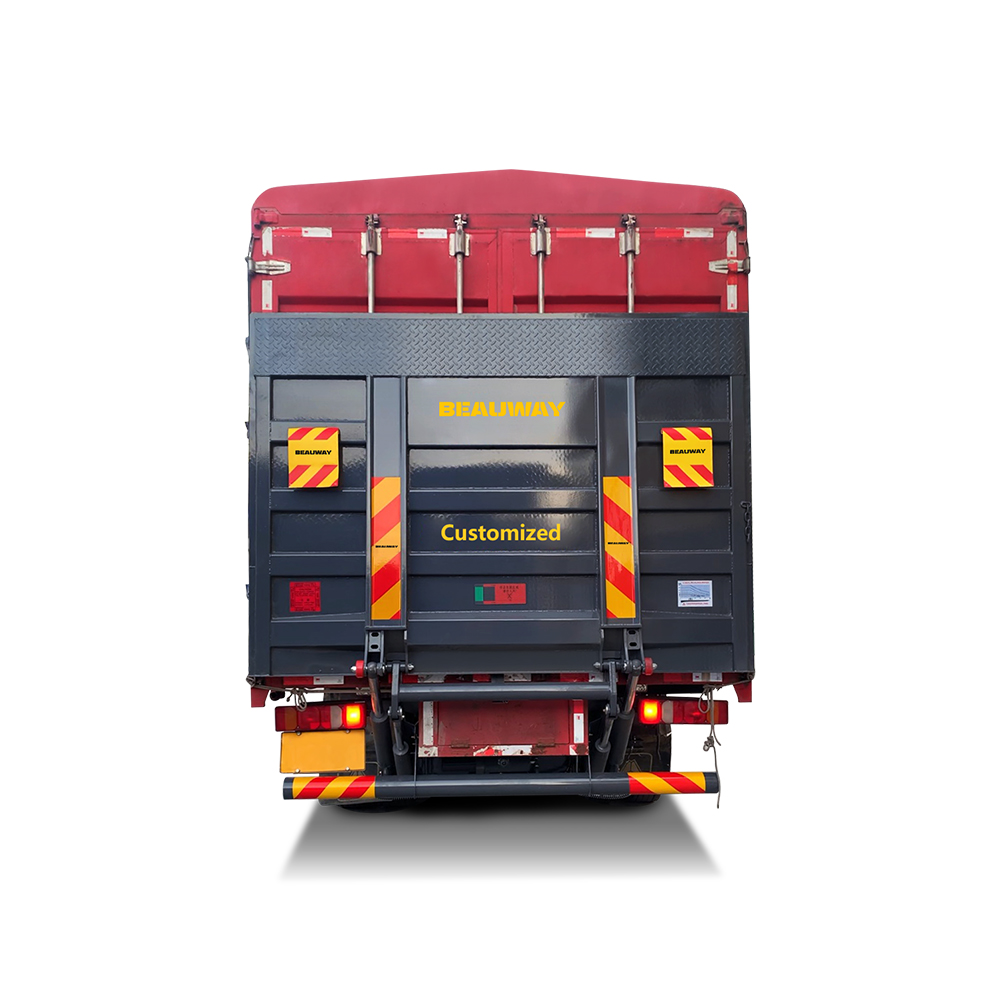

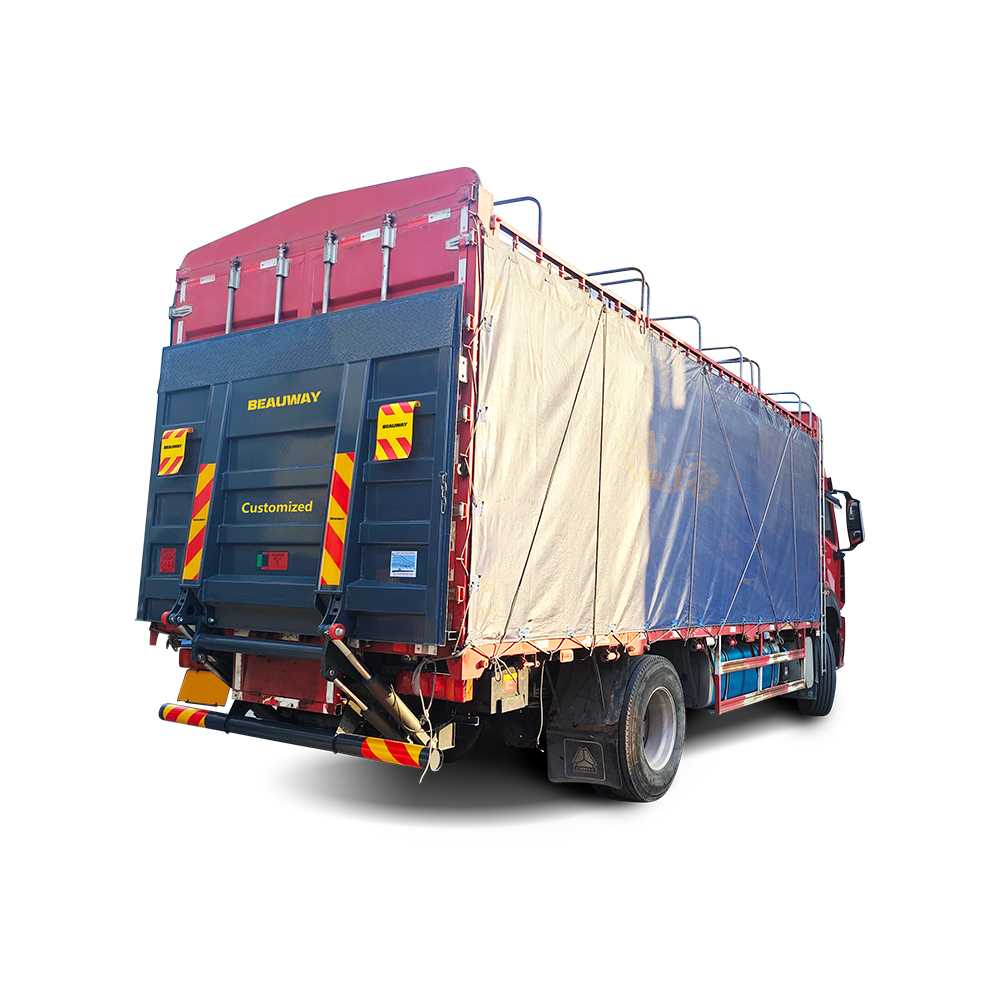

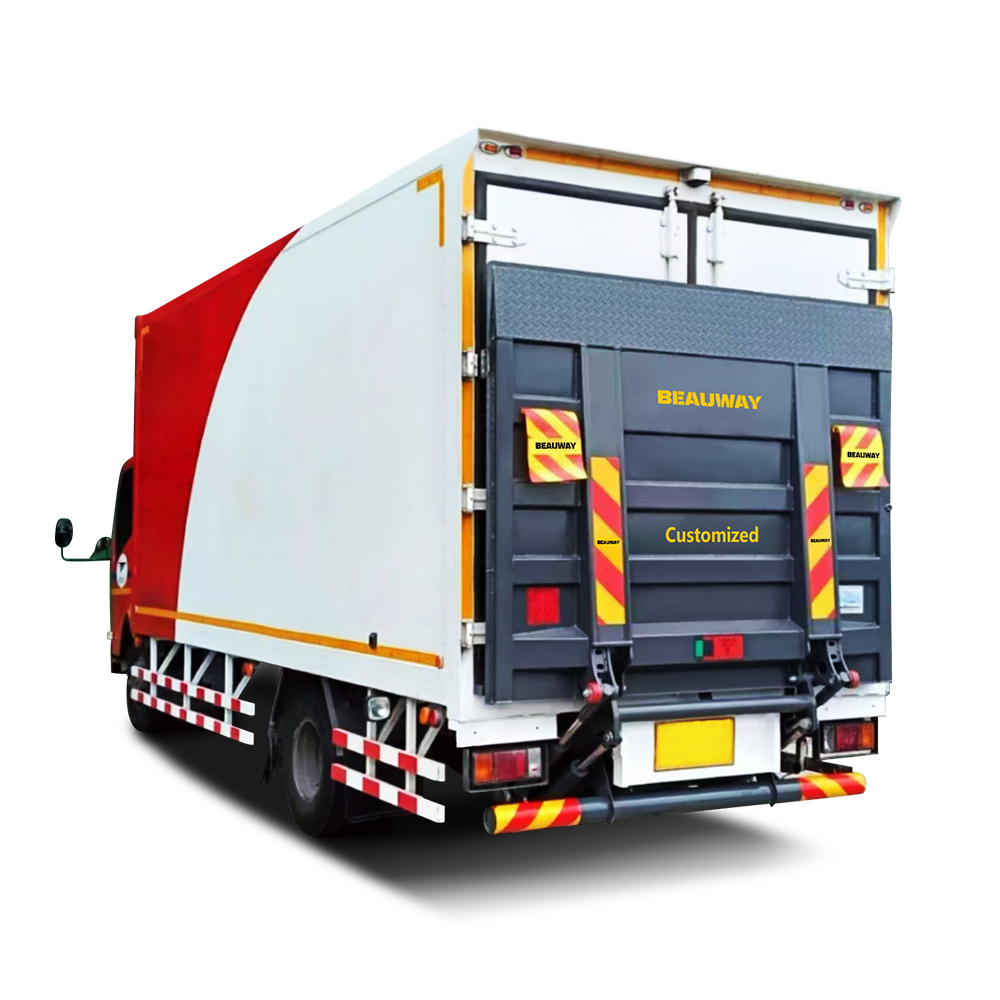

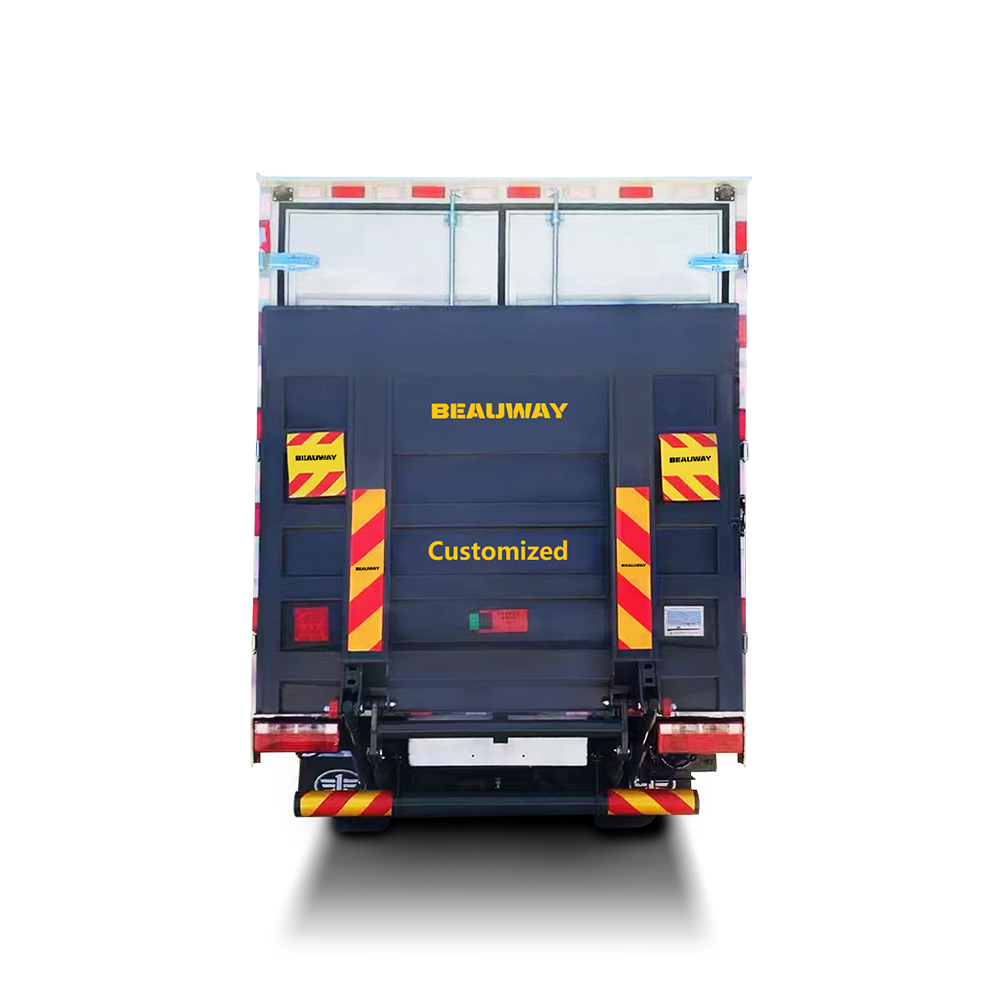

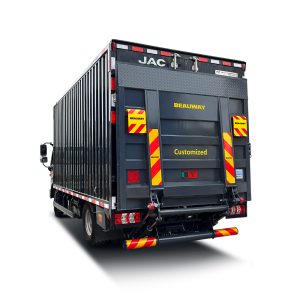

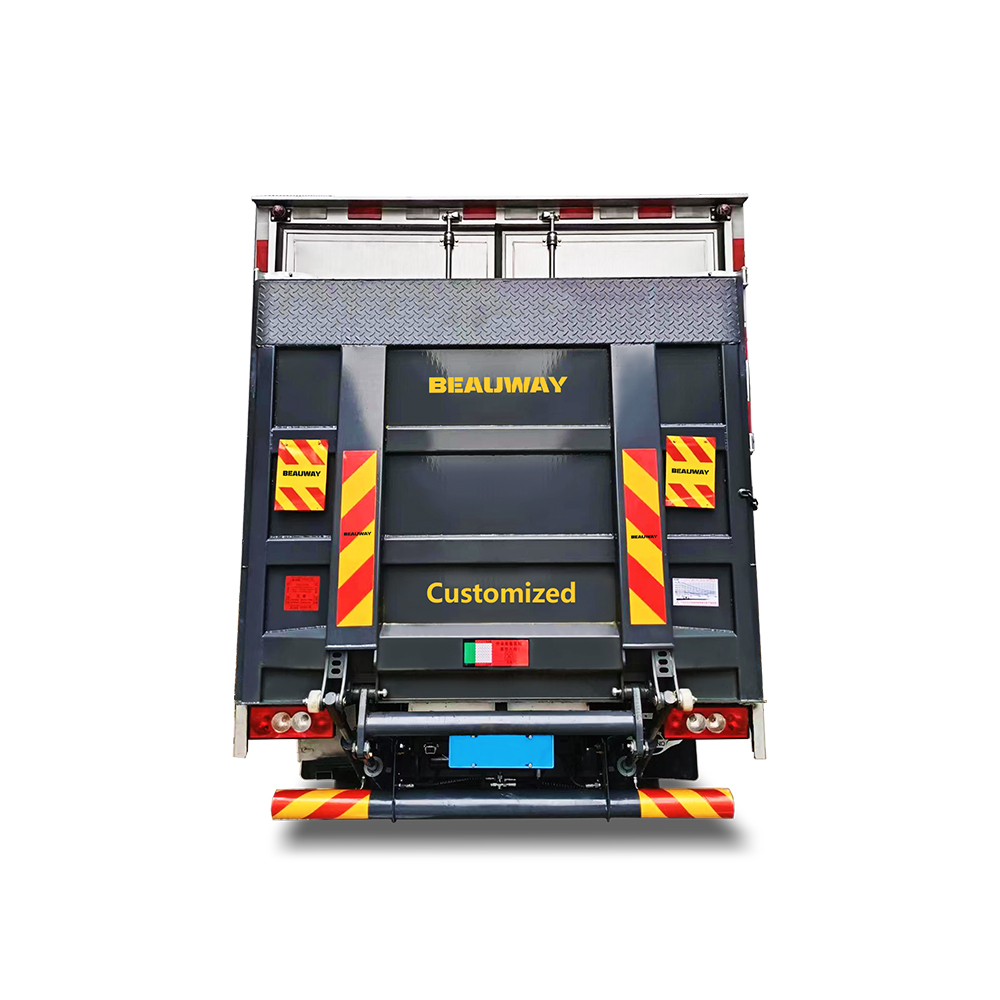

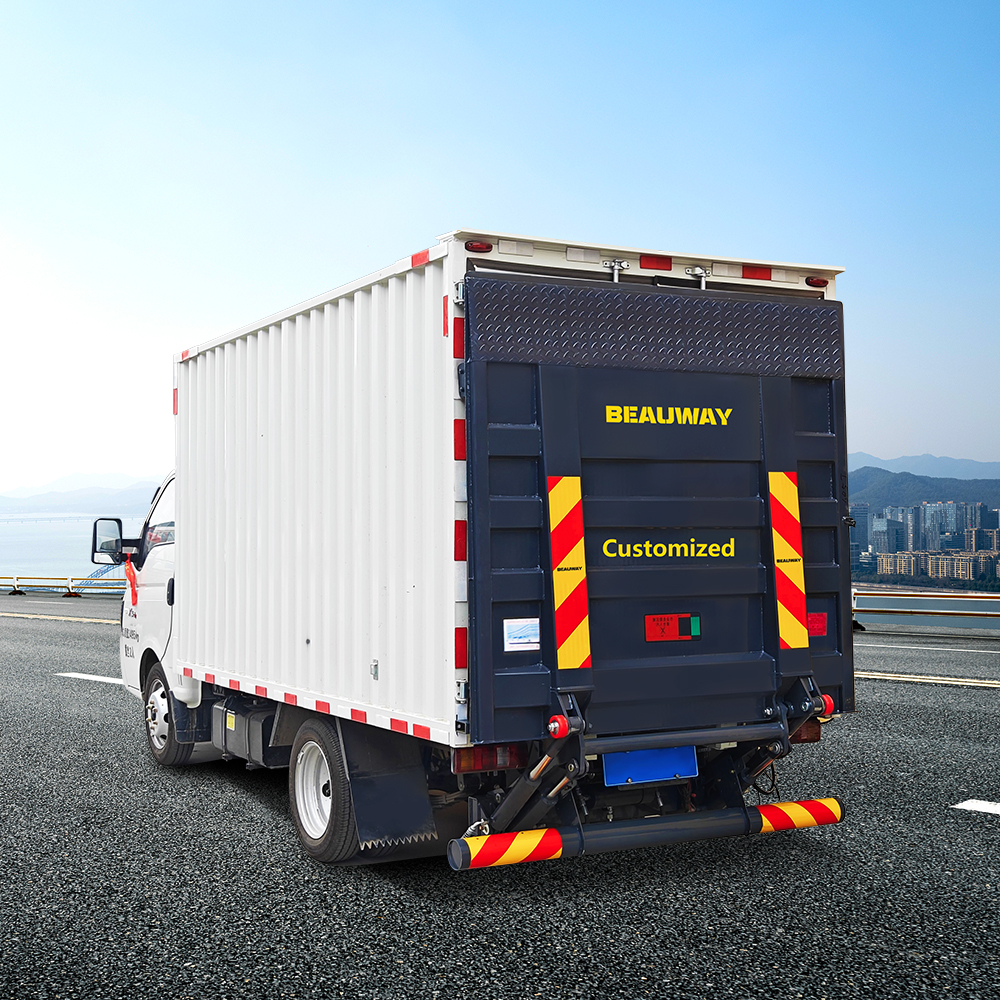

Beauway 2000kg Steel Plate Hydraulic Cantilever Tail Lift

PRODUCT PARAMETERS

Product Type: Cantilever Tail Lift
Model Numbers: BW-PP20-130, BW-PP20-150
Load Capacity: 2000kg
Platform Dimensions: H1600-1800mm, W1800-2500mm
Platform Material: Steel
Power Supply Voltage: 24V
Motor Power: 2.2/2.4/2.8 kW

CERTIFICATIONS

ISO 9001

CE Certified

SGS Tested

TÜV Rheinland

Manufactured to ISO 9001 standards with CNC machining and automated welding; key models are CE certified and independently tested by SGS and TÜV Rheinland, meeting ECE, UKCA, and DOT/FMVSS requirements.

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

TAIL LIFT OVERVIEW

The Beauway 2000kg cantilever tail lift is developed for high-capacity cargo handling in heavy commercial vehicles and logistics transport fleets. With a reinforced steel platform structure, this equipment supports lifting operations up to 2000kg, making it suitable for industrial freight transport, distribution trucks, and large cargo delivery vehicles. As part of modern cantilever lifts used in commercial transport, this system provides dependable lifting performance and stable load support during loading and unloading tasks.

For demanding transport environments, the lift integrates a durable hydraulic mechanism that enables controlled lifting and lowering of heavy cargo. The adjustable platform size (H1600–1800mm, W1800–2500mm) allows compatibility with different truck body configurations. Designed for intensive logistics operations, this steel cantilever tail lift improves loading efficiency, reduces manual handling effort, and helps optimize workflow for freight distribution and large-scale cargo transport.

TECHNICAL SPECIFICATIONS

Parameter	BW-PP20-130	BW-PP20-150
Platform Size	H1600-1800 W1800-2500 (customizable)	H1600-1800 W1800-2500 (customizable)
Load Capacity	2000KG	2000KG
Power Supply	24V	24V
Working Pressure	16-18 MPa	16-18 MPa
Lifting Height (mm)	950-1250	1200-1450
Frame Model	750	880
Total Weight (kg)	500	500
