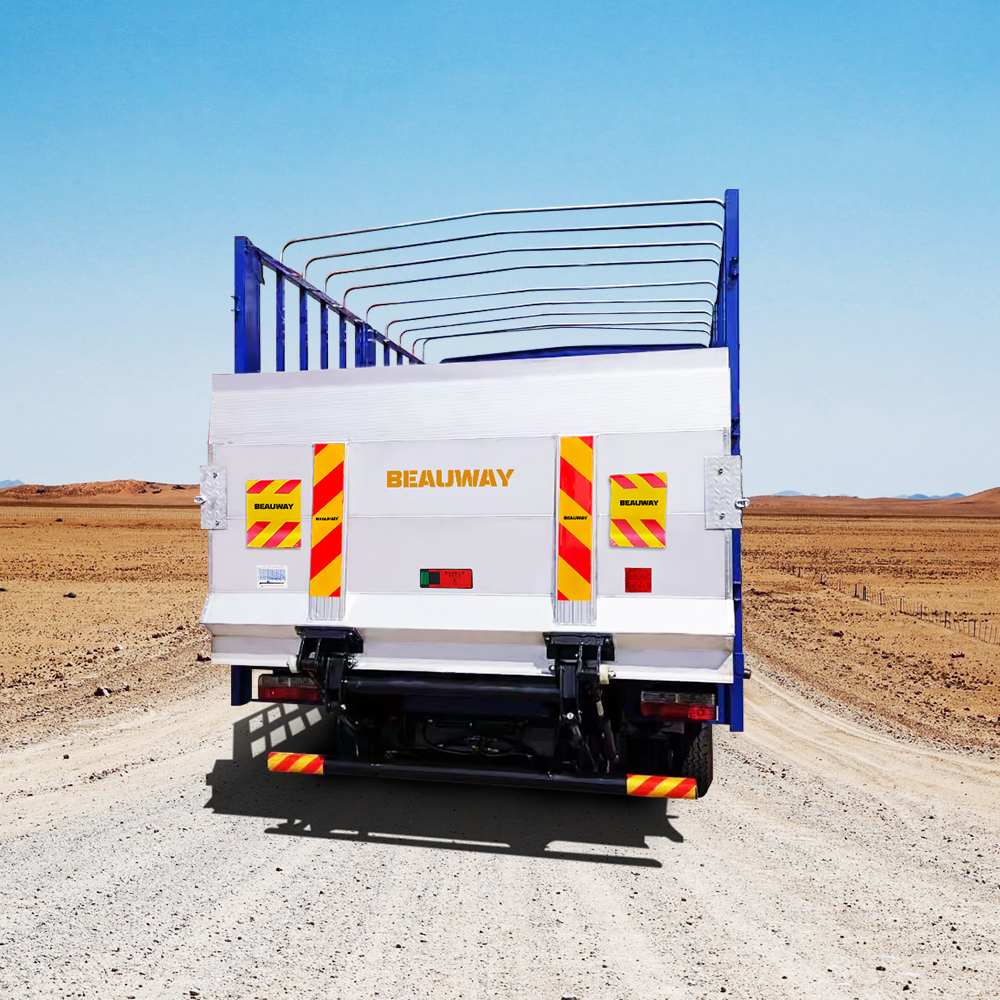

Beauway Aluminum Plate Hydraulic Cantilever Tail Lift 500Kg
PRODUCT PARAMETERS
CERTIFICATIONS
ISO 9001
CE Certified
SGS Tested
TÜV Rheinland
Manufactured to ISO 9001 standards with CNC machining and automated welding; key models are CE certified and independently tested by SGS and TÜV Rheinland, meeting ECE, UKCA, and DOT/FMVSS requirements.
Description
TAIL LIFT OVERVIEW

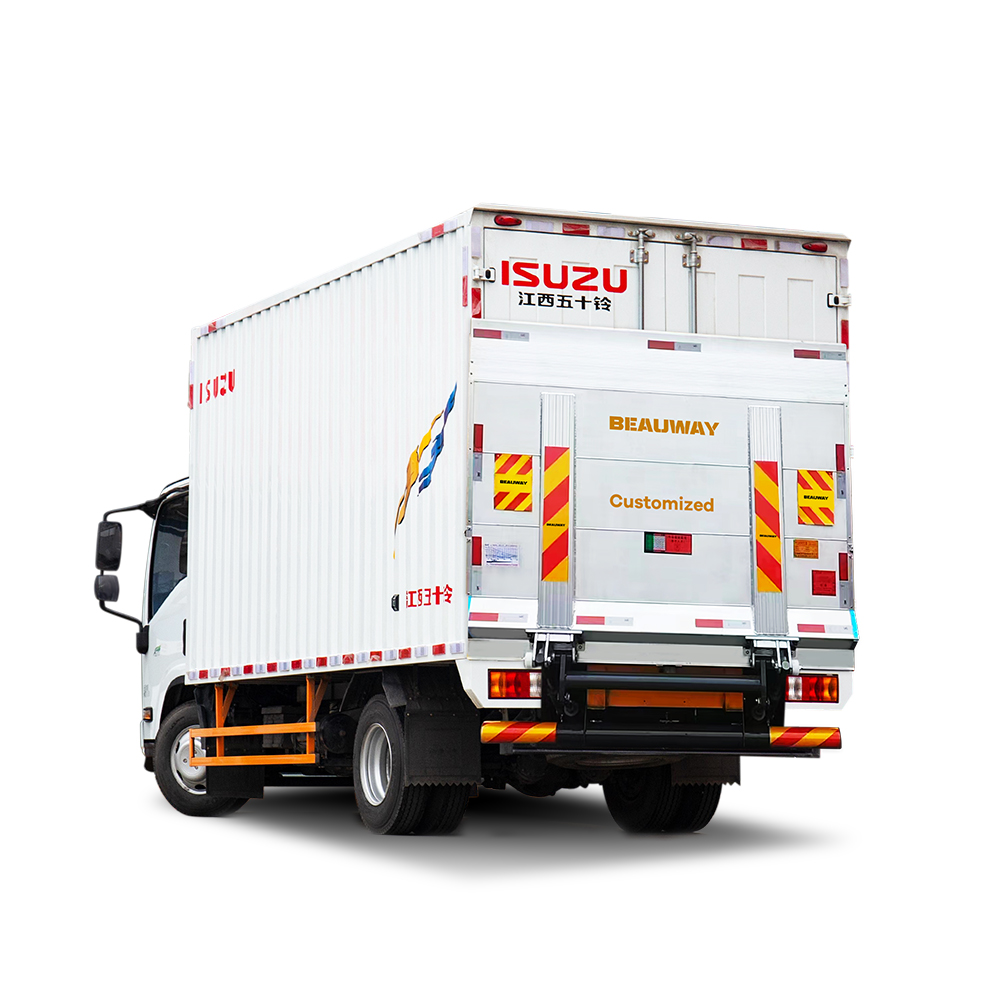

The Beauway 500kg aluminum cantilever tail lift is developed for delivery vans and light commercial trucks that require efficient cargo handling while keeping vehicle weight low. Constructed with a corrosion-resistant aluminum platform, the lift provides a strong yet lightweight solution for frequent loading tasks in logistics and distribution environments. As one of the modern cantilever lifts used in urban transport fleets, it supports safe and convenient handling of parcels, cartons, and small freight during daily delivery operations.
Its compact electro-hydraulic system ensures controlled lifting and lowering, allowing operators to manage cargo movement smoothly and efficiently. The adjustable platform dimensions (H1600–1800mm, W1800–2100mm) make installation suitable for different van and truck body configurations. Powered by a 12V electrical system with a 1.2kW motor, this aluminum cantilever tail lift helps improve loading productivity, reduce manual handling effort, and support high-frequency delivery cycles for courier services and regional logistics transport.
TECHNICAL SPECIFICATIONS
| Parameter | BW-PP05-085 | BW-PP05-095 | BW-PP05-130 |
|---|---|---|---|
| Platform Size | H1600-1800 W1800-2100 (customizable) | H1600-1800 W1800-2100 (customizable) | H1600-1800 W1800-2100 (customizable) |
| Load Capacity | 500KG | 500KG | 500KG |
| Power Supply | 12V | 12V | 12V |
| Working Pressure | 16-18 MPa | 16-18 MPa | 16-18 MPa |
| Lifting Height (mm) | 600-820 | 700-850 | 850-1100 |
| Frame Model | 530 | 580 | 700 |
| Total Weight (kg) | 350KG | 350KG | 350KG |

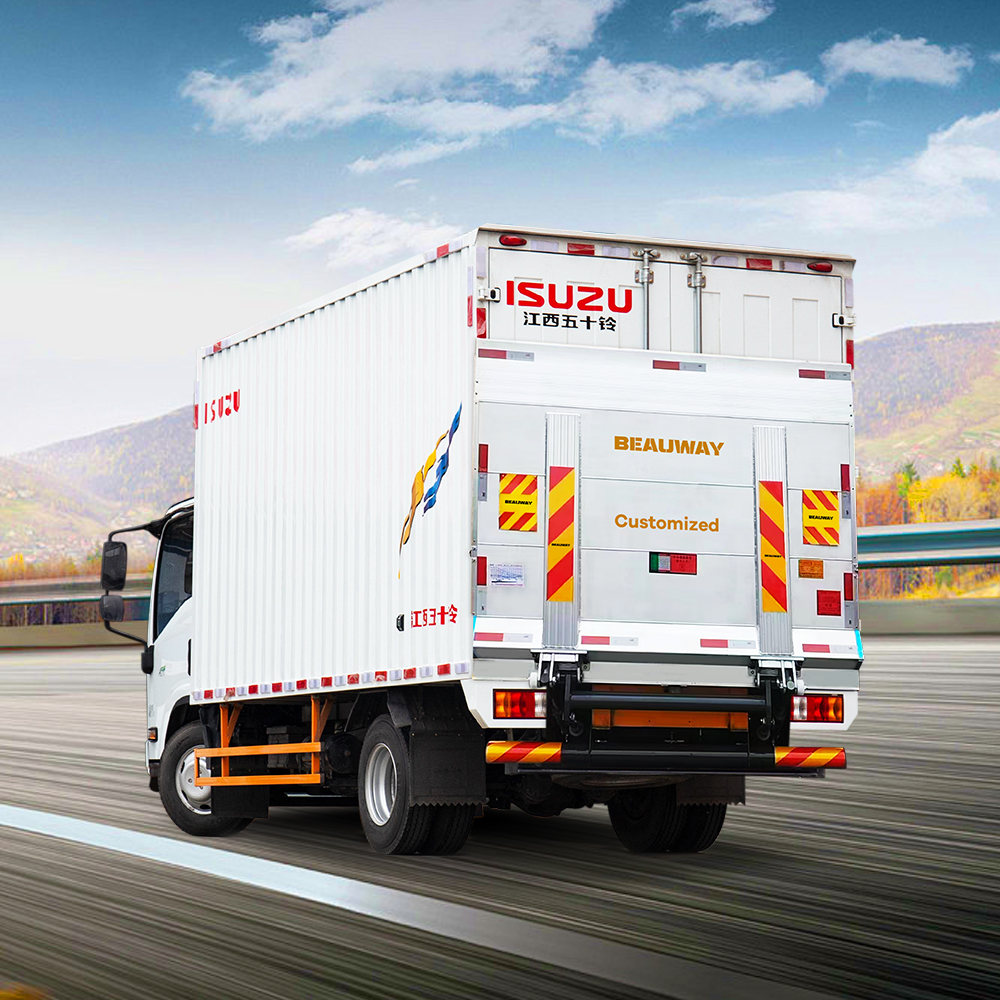

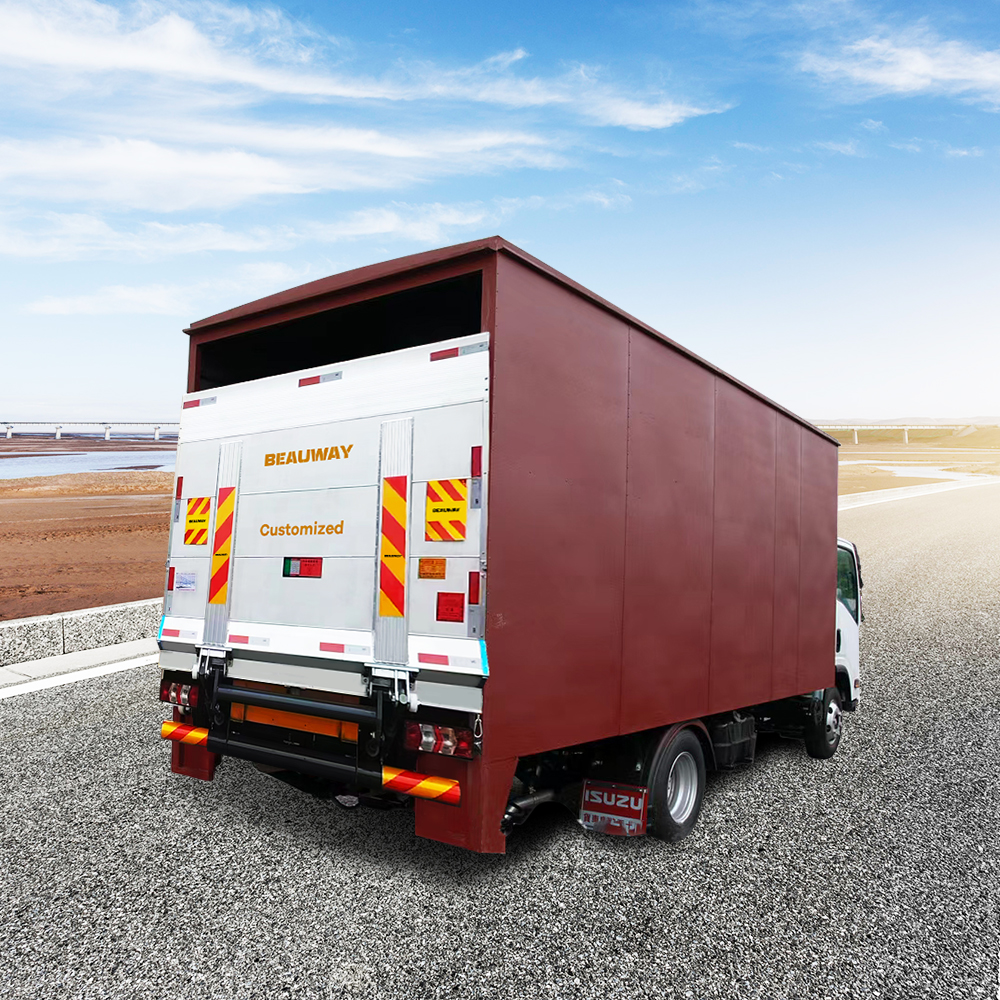

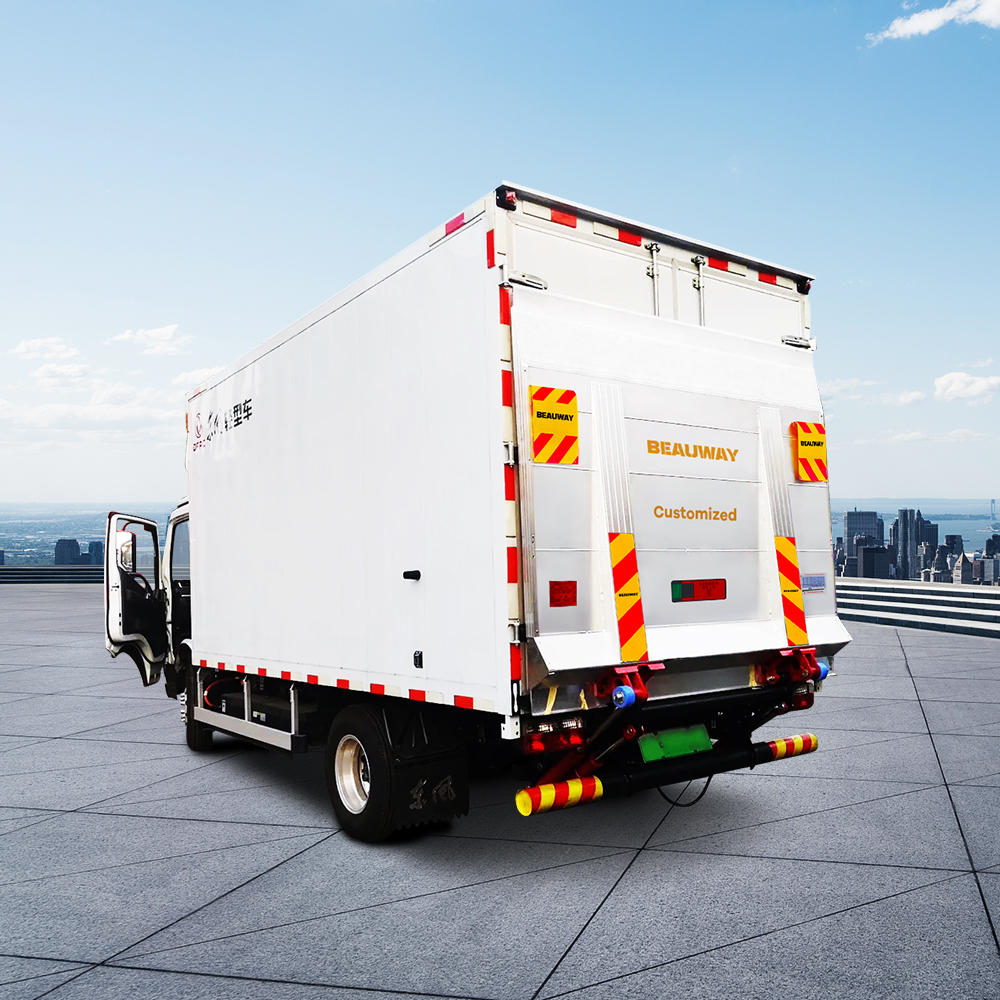

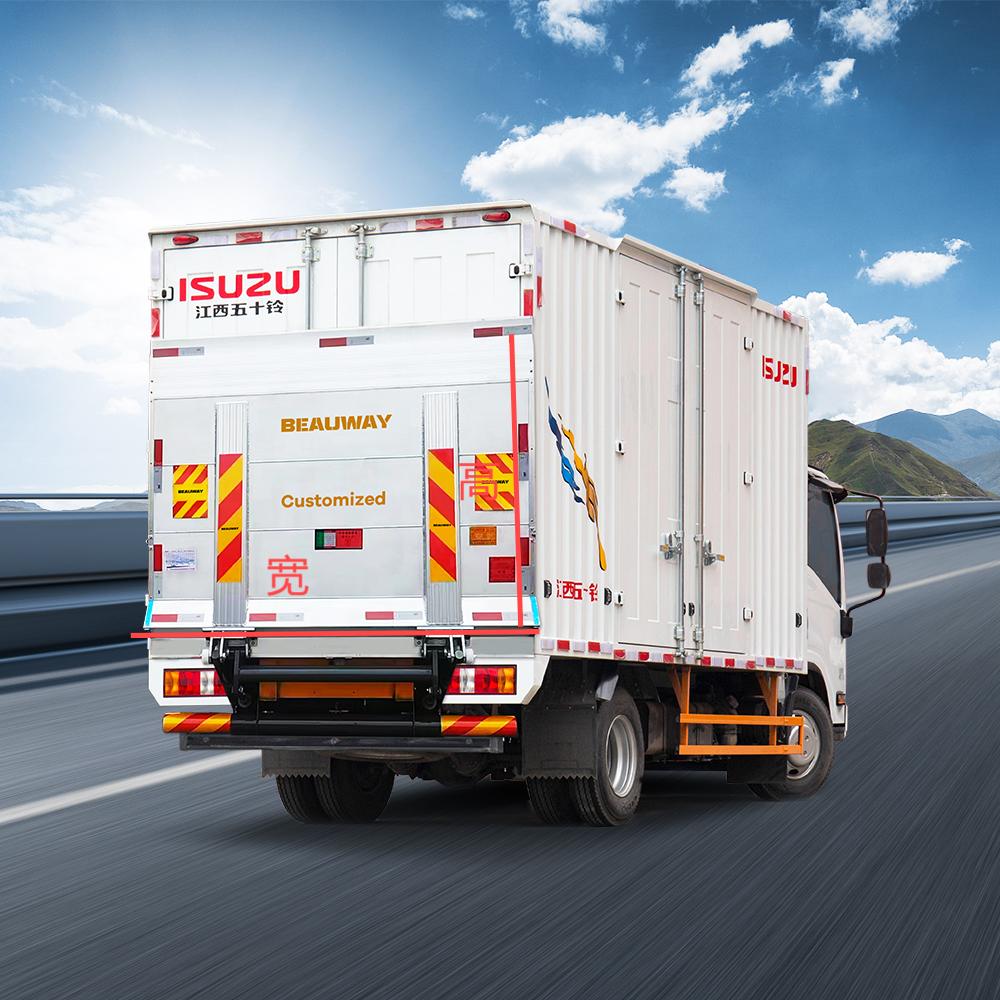

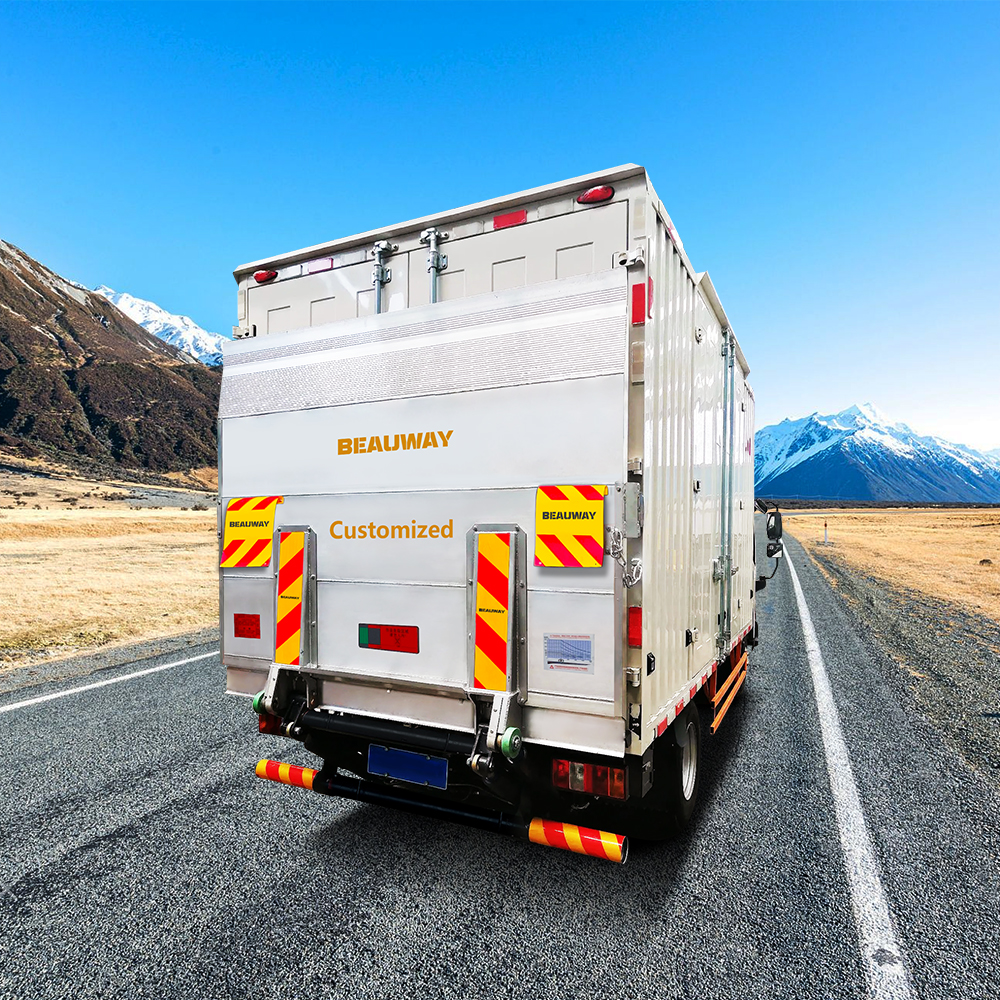

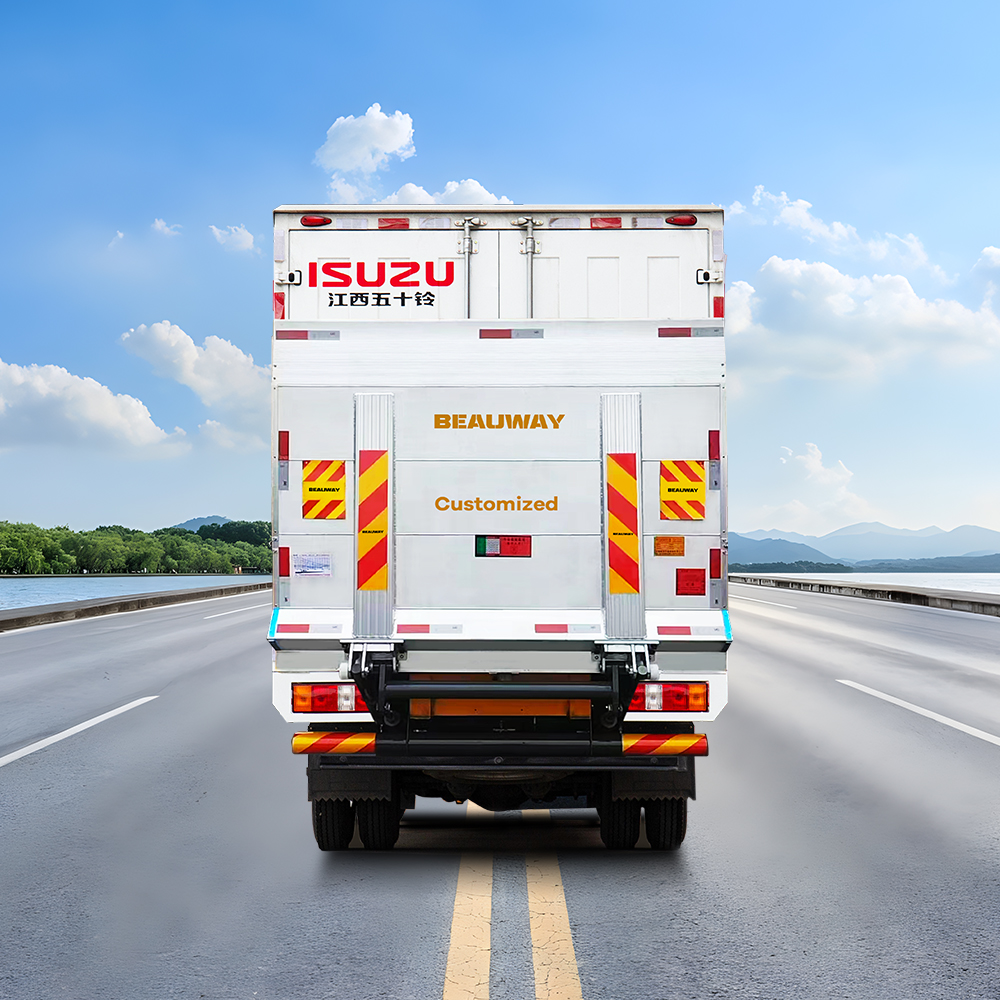

TAIL LIFT SHOWCASE
