Beauway Aluminum Plate Hydraulic Cantilever Tail Lift 2000Kg
PRODUCT PARAMETERS
Description
TAIL LIFT OVERVIEW
The Beauway 2000kg aluminum cantilever tail lift is developed for heavy cargo handling in commercial transport fleets and large logistics vehicles. Featuring a reinforced aluminum platform, the lift offers a balance between structural strength and reduced equipment weight, helping trucks maintain higher payload efficiency during freight operations. As part of modern cantilever lifts used in distribution and transport systems, it provides stable support for loading pallets, crates, and bulk cargo in demanding delivery environments.
To support intensive logistics applications, the lift is equipped with a robust hydraulic lifting mechanism that enables smooth and controlled platform movement when raising or lowering heavy goods. The adjustable platform dimensions (H1600–1800mm, W1800–2500mm) allow installation on a wide range of truck body configurations. Powered by a 24V electrical system with motor options of 2.2kW, 2.4kW, and 2.8kW, this aluminum cantilever tail lift delivers reliable lifting performance for freight transport, distribution fleets, and large-scale cargo handling operations.
TECHNICAL SPECIFICATIONS
| Parameter | BW-PP20-130 | BW-PP20-150 |
|---|---|---|
| Platform Size | H1600-1800 W1800-2500 (customizable) | H1600-1800 W1800-2500 (customizable) |
| Load Capacity | 2000KG | 2000KG |
| Power Supply | 24V | 24V |
| Working Pressure | 16-18 MPa | 16-18 MPa |
| Lifting Height (mm) | 950-1250 | 1200-1450 |
| Frame Model | 750 | 880 |
| Total Weight (kg) | 450 | 450 |

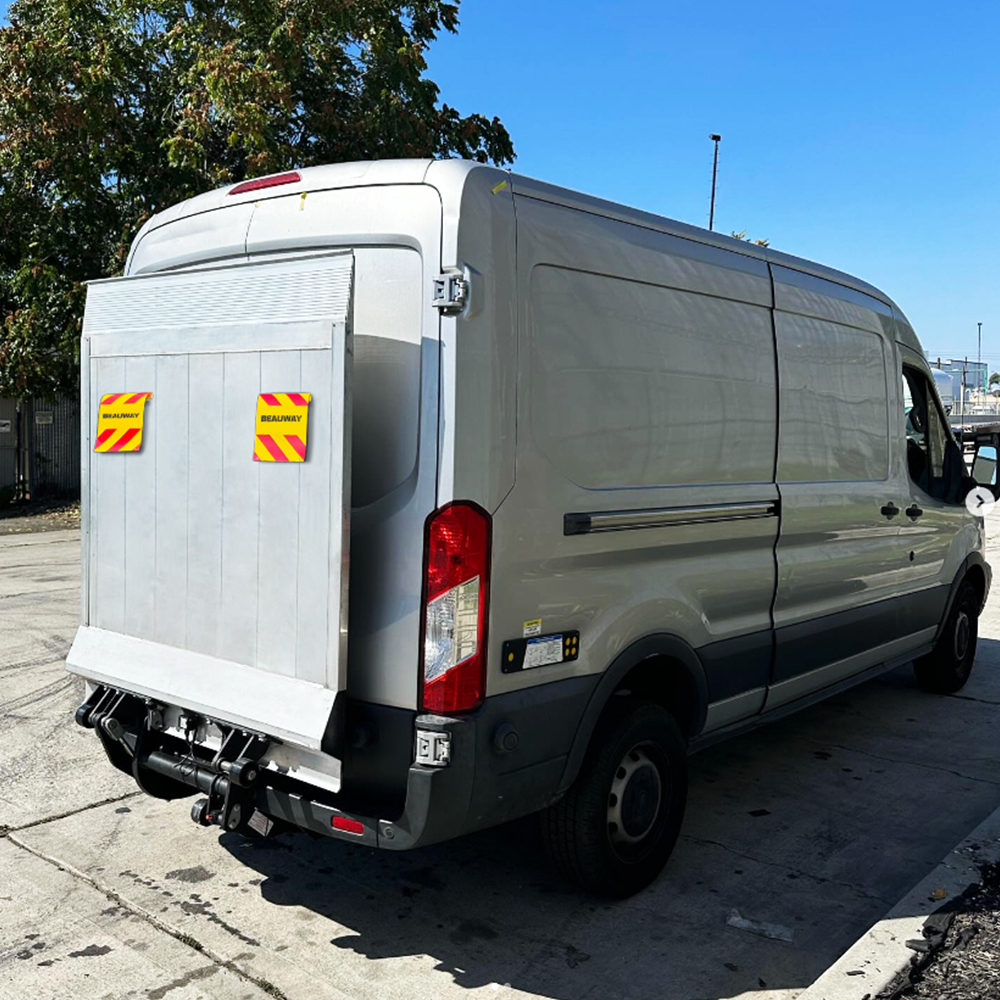

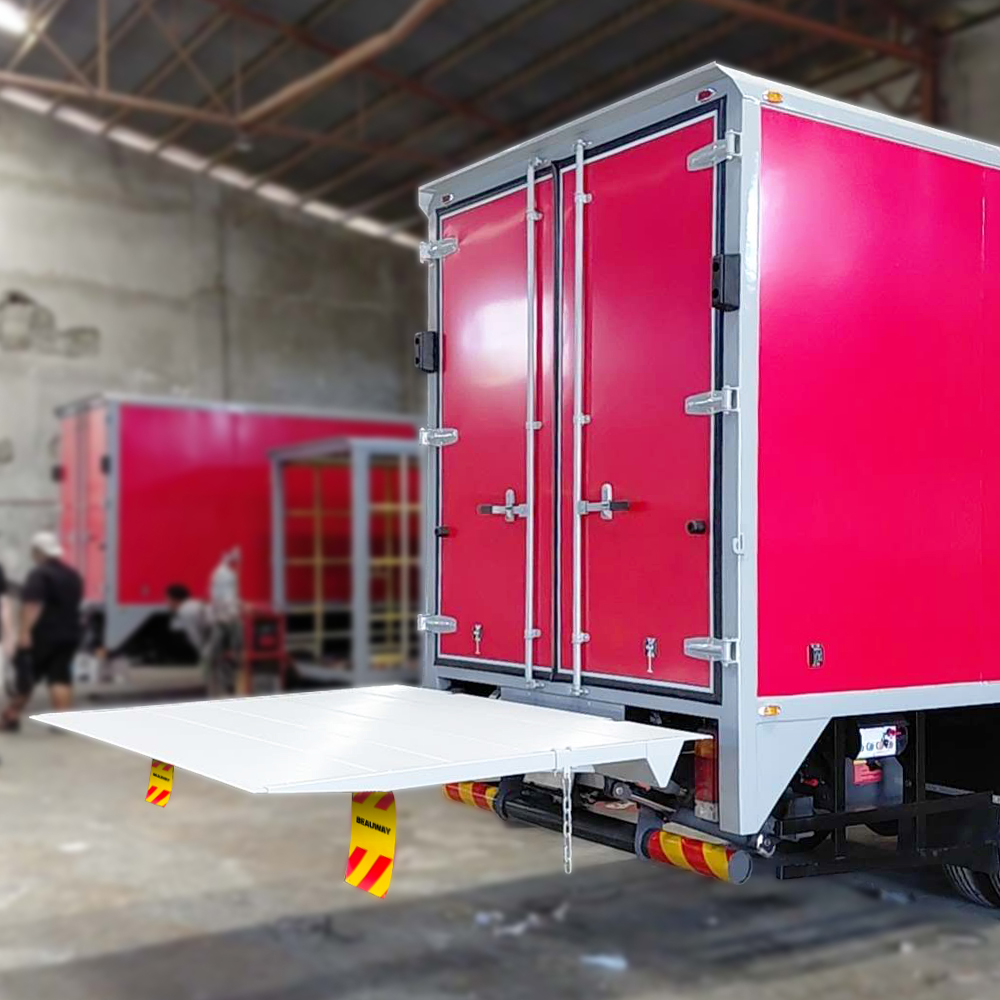

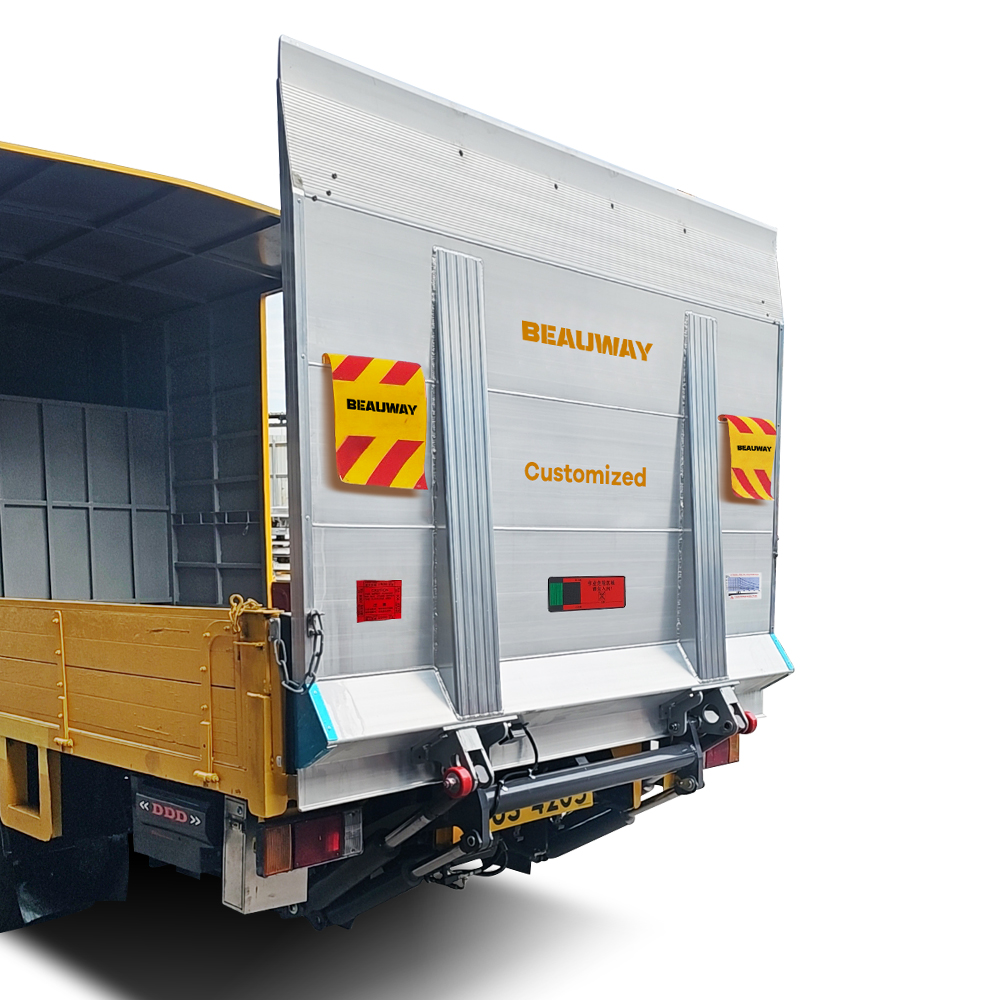

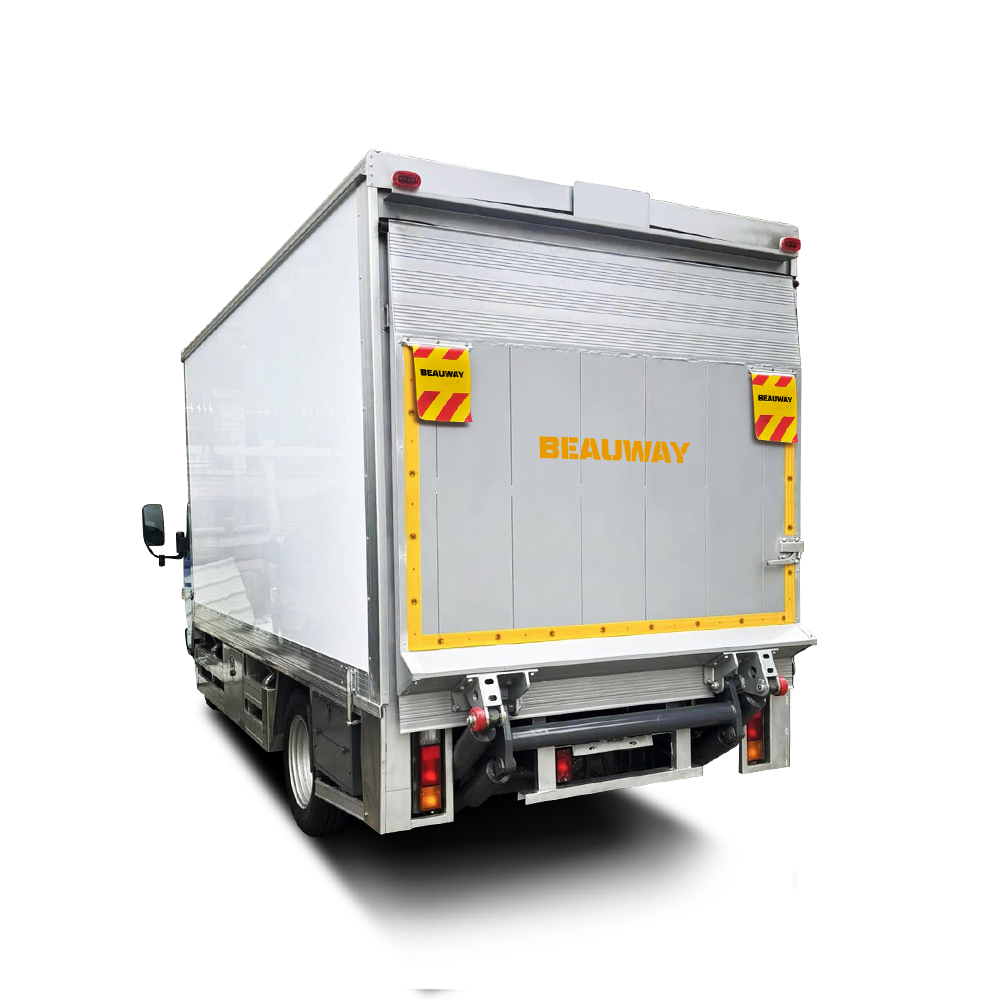

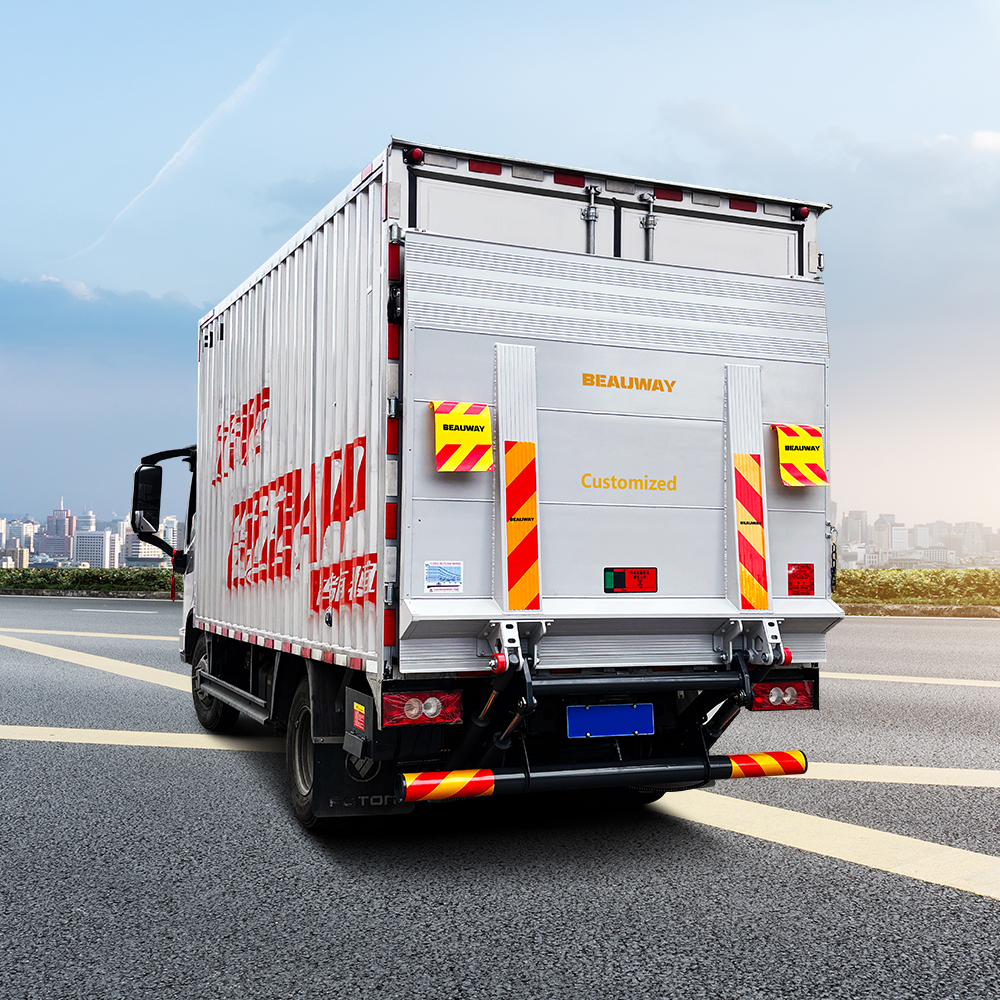

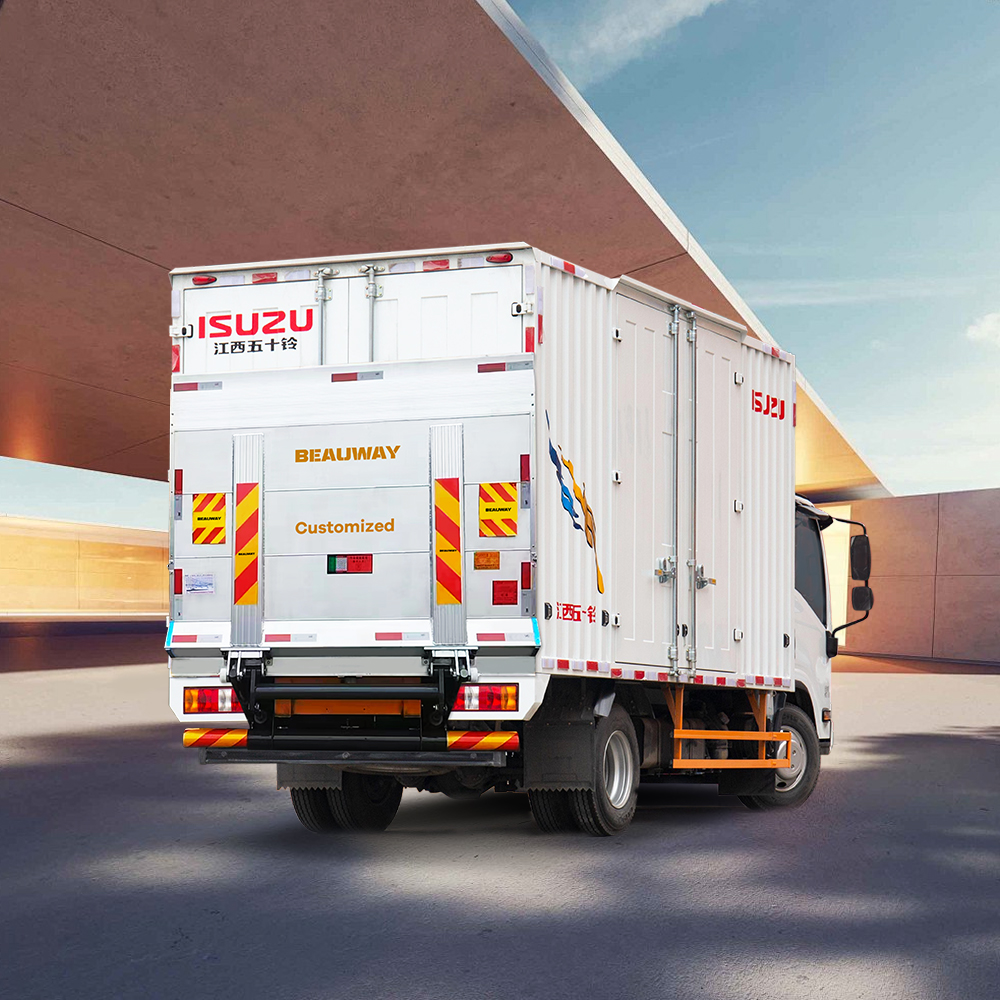

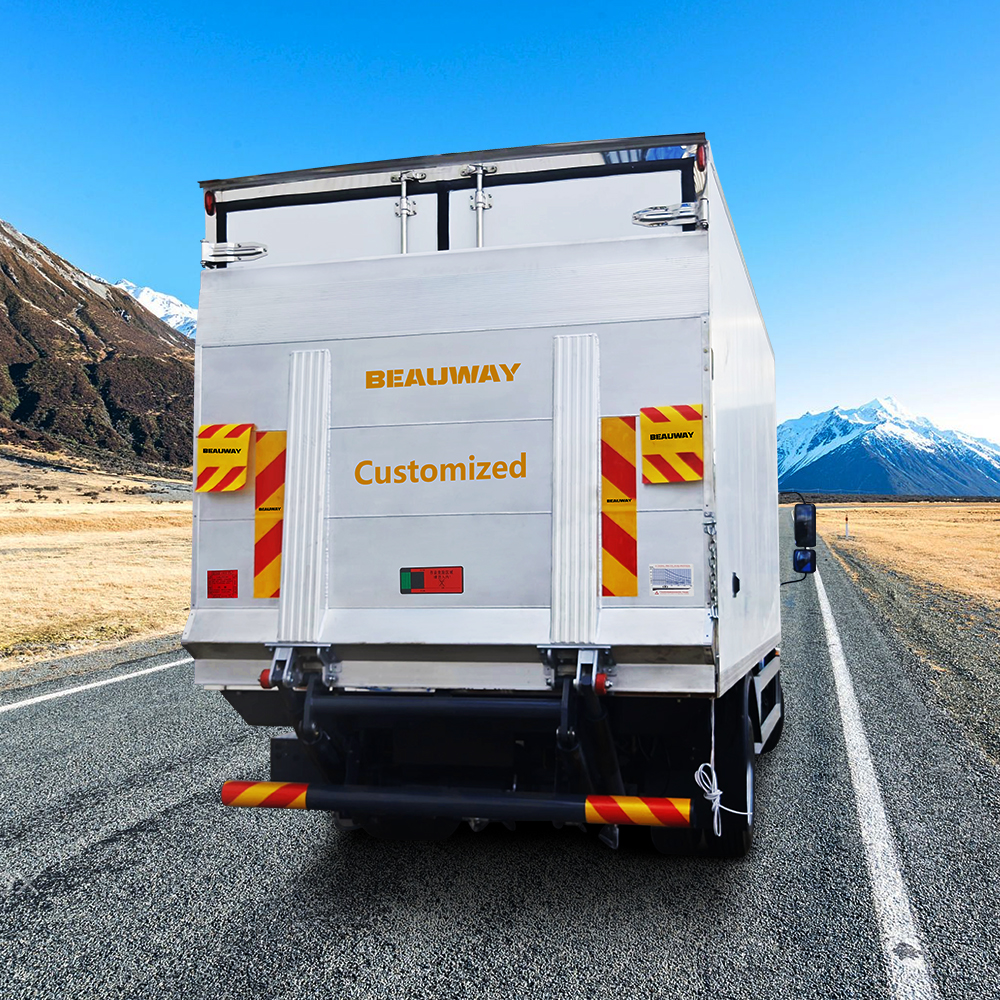

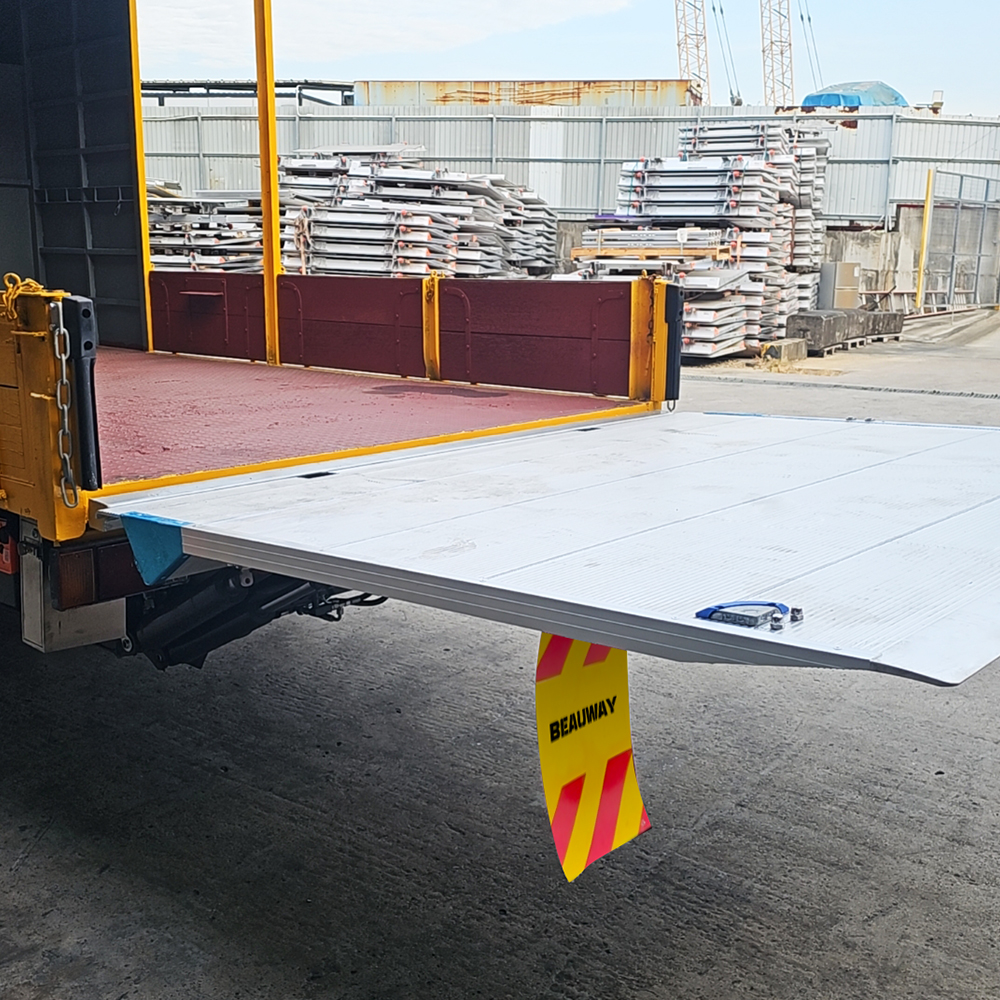

TAIL LIFT SHOWCASE
FAQs
What Is The Main Purpose Of Tail Lift?
Tail Lift Is Mainly Used To Assist In Loading And Unloading Heavy Or Large Cargo. With The Tail Lift, Operators Can Easily Lift Cargo From The Ground To The Carriage, Or Lower Cargo From The Carriage To The Ground, Greatly Improving Loading And Unloading Efficiency And Reducing Labor.
What Types Of Tail Lifts Are There?
There are several types of tail lifts, including Cantilever Tail Lift, Folding Tail Lift, Retractable Tail Lift, Vertical Tail Lift, Tuckaway Tail Lift, and Three-Section Bumper Tail Lift, designed for different trucks and loading needs.
How To Choose A Suitable Tail Lift?
Vehicle Type: Different Types And Sizes Of Tail Lifts Are Suitable For Different Models.
Loading Requirements: Choose A Tail Lift With Appropriate Load Capacity According To The Weight Of The Cargo.
Frequency Of Use: It Is Recommended To Choose A Tail Lift With Higher Durability For Frequent Use.
Convenience Of Operation: Choose A Tail Lift That Is Simple To Operate And Easy To Maintain.
What Is The General Load Capacity Of A Tail Lift?
The Load Capacity Of A Tail Lift Varies According To The Model And Purpose, Generally Ranging From Several Hundred Kilograms To Several Tons. When Choosing A Tail Lift, Ensure That Its Load Capacity Meets Actual Needs To Ensure Safety And Stability.
Is The Installation And Maintenance Of The Tail Lift Complicated?
The Installation Of The Tail Lift Usually Requires Professional Technicians To Ensure Its Safe And Reliable Working Condition. In Terms Of Maintenance, Regularly Check The Hydraulic System, Electrical System And Mechanical Parts To Ensure Their Normal Operation And Replace Worn Parts In Time.
