Beauway Aluminum Plate Hydraulic Cantilever Tail Lift 1500Kg
PRODUCT PARAMETERS
Description
TAIL LIFT OVERVIEW
The Beauway 1500kg aluminum cantilever tail lift is developed for commercial transport vehicles that require reliable lifting performance with reduced equipment weight. Constructed with a high-strength aluminum platform, this lifting system offers a balance of durability and lightweight efficiency, helping trucks maintain better payload capacity during daily cargo operations. As part of modern cantilever lifts used in logistics fleets, it enables efficient handling of pallets, cartons, and distribution goods in warehouse and delivery environments.
For demanding transport applications, the lift integrates a stable hydraulic lifting mechanism that provides controlled platform movement for safe cargo loading and unloading. The adjustable platform dimensions (H1600–1800mm, W1800–2500mm) allow installation across various truck and delivery vehicle configurations. Powered by a 12V/24V electrical system with motor options of 2.2kW, 2.4kW, and 2.8kW, this aluminum cantilever tail lift supports heavy-duty logistics tasks while improving operational efficiency and reducing manual handling effort.
TECHNICAL SPECIFICATIONS
| Parameter | BW-PP15-110 | BW-PP15-130 | BW-PP15-150 |
|---|---|---|---|
| Platform Size | H1600-1800 W1800-2500 (customizable) | H1600-1800 W1800-2500 (customizable) | H1600-1800 W1800-2500 (customizable) |
| Load Capacity | 1500KG | 1500KG | 1500KG |
| Power Supply | 12V/24V | 12V/24V | 12V/24V |
| Working Pressure | 16-18 MPa | 16-18 MPa | 16-18 MPa |
| Lifting Height (mm) | 850-1050 | 950-1250 | 1200-1450 |
| Frame Model | 680 | 750 | 880 |
| Total Weight (kg) | 400KG | 400KG | 400KG |

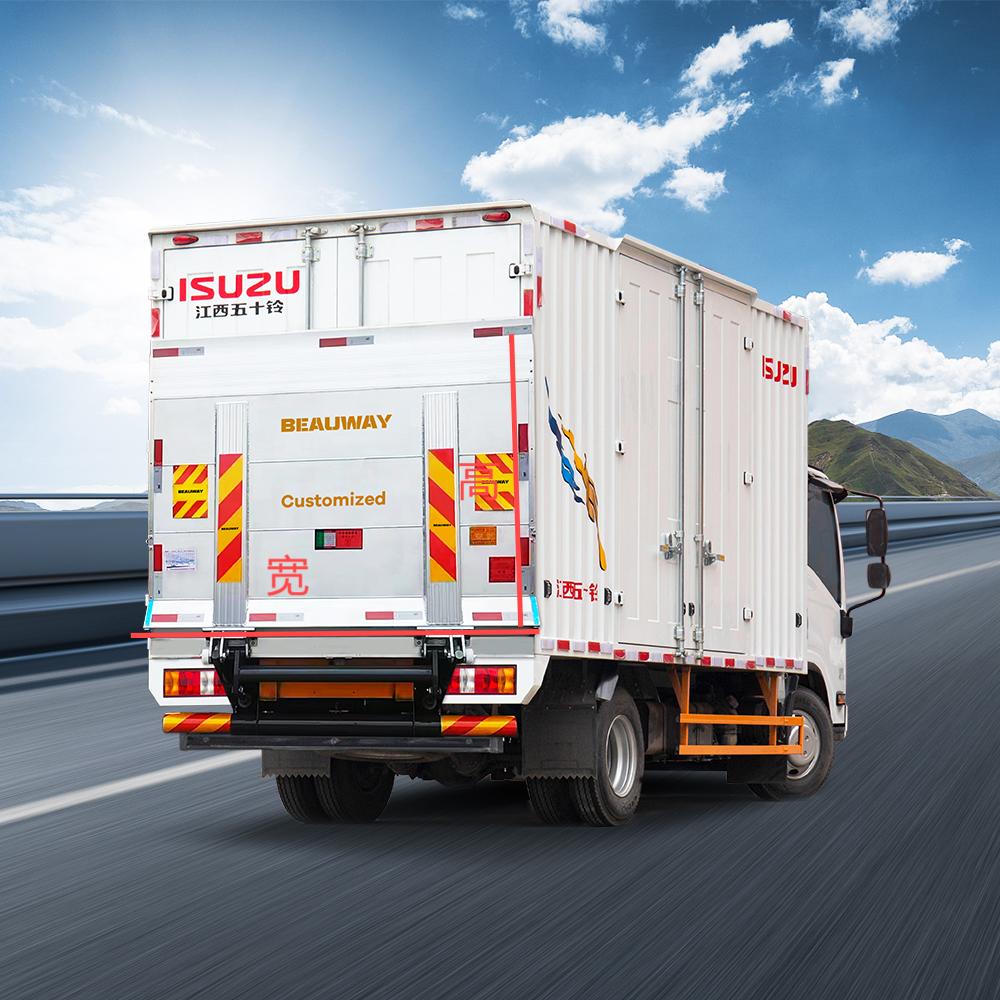

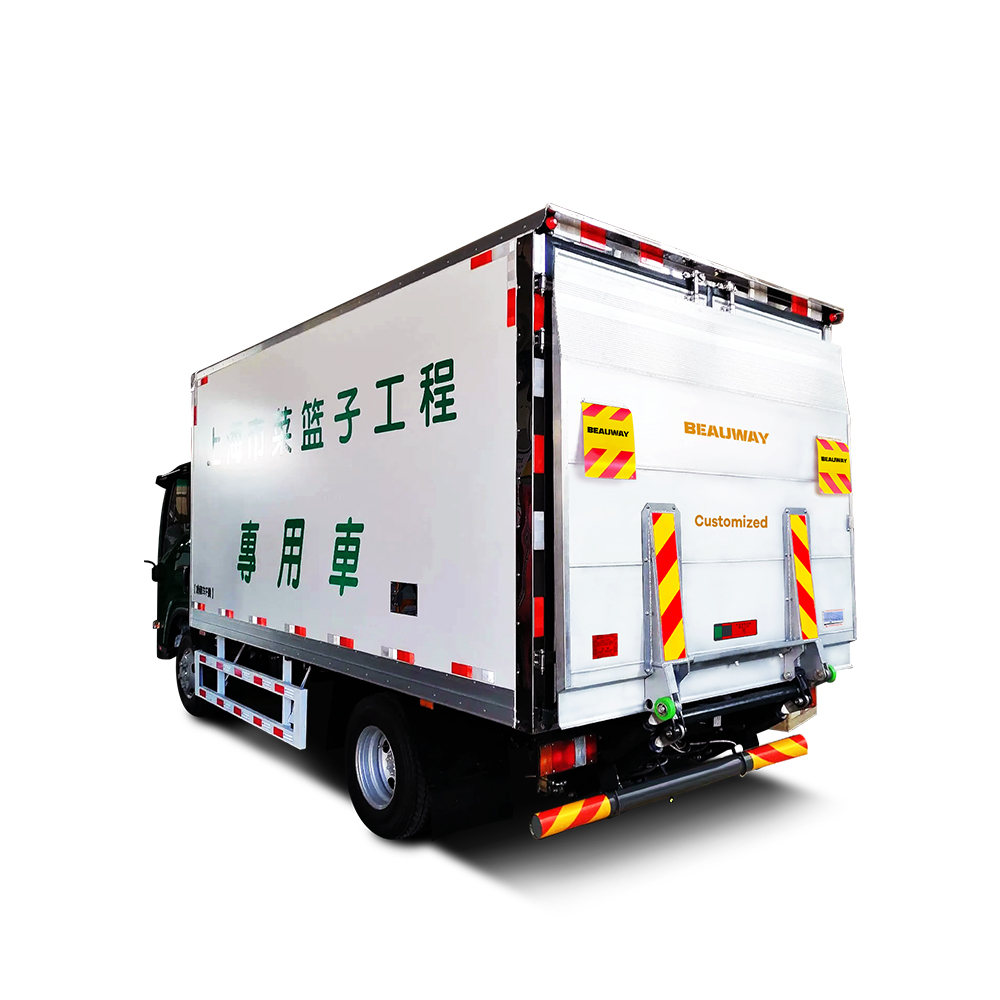

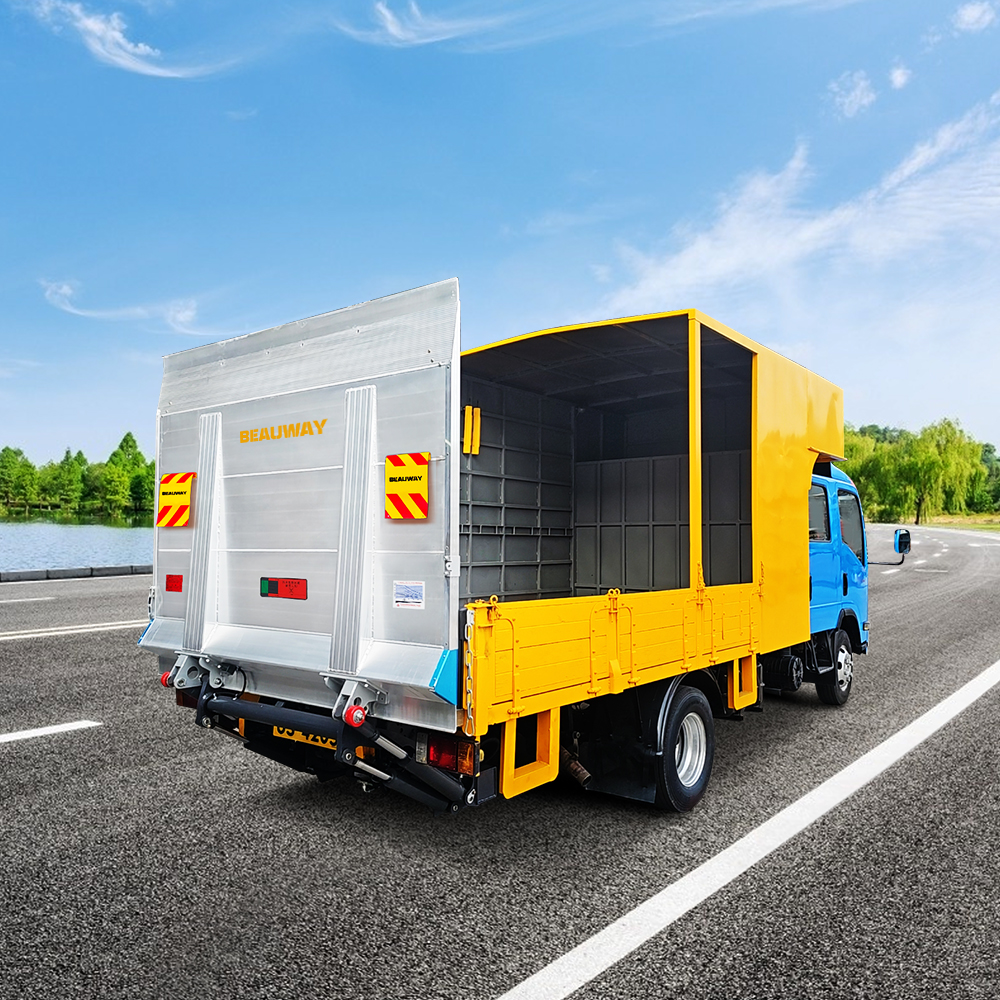

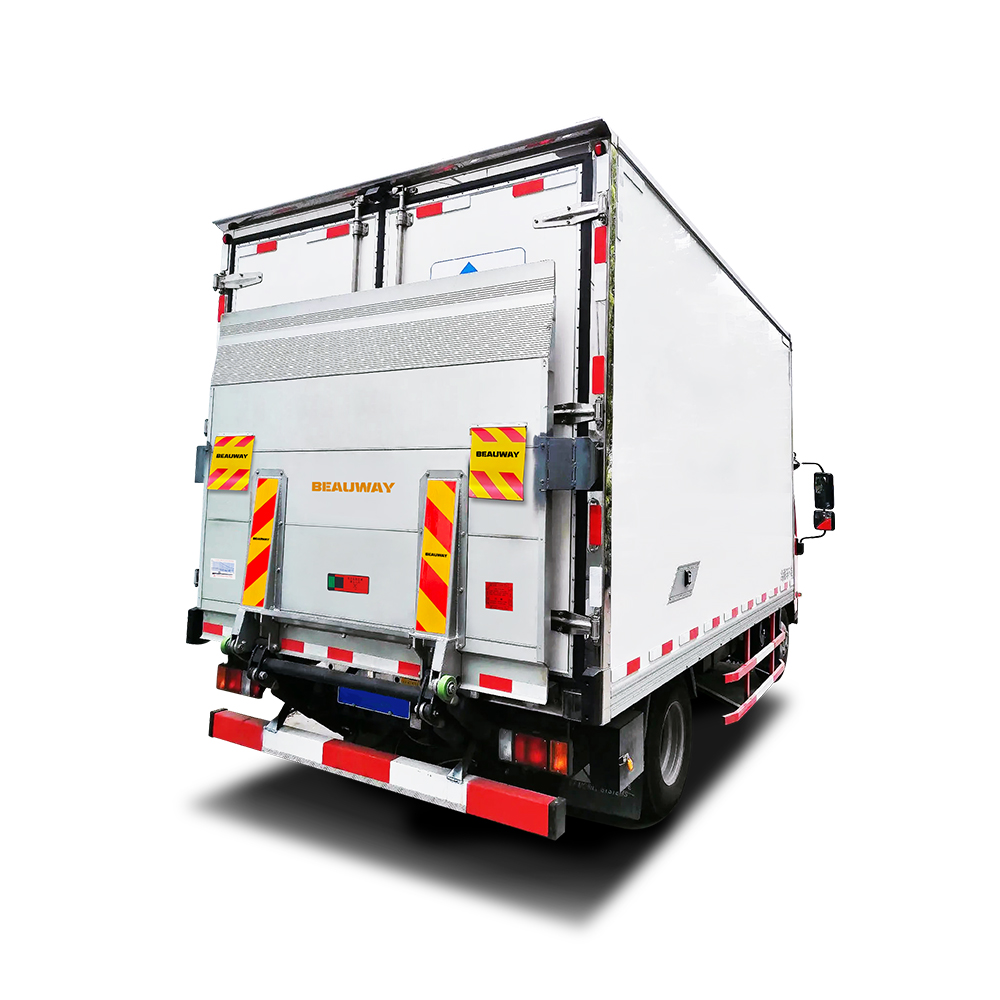

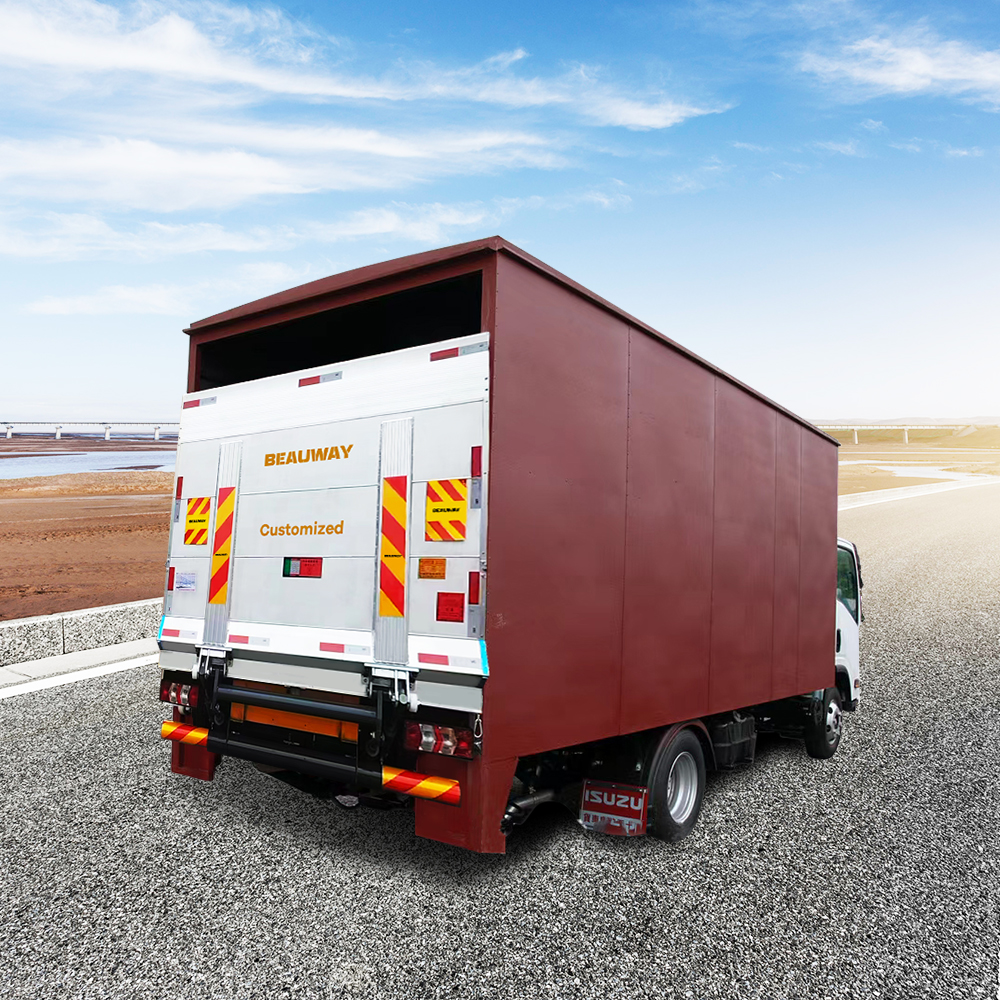

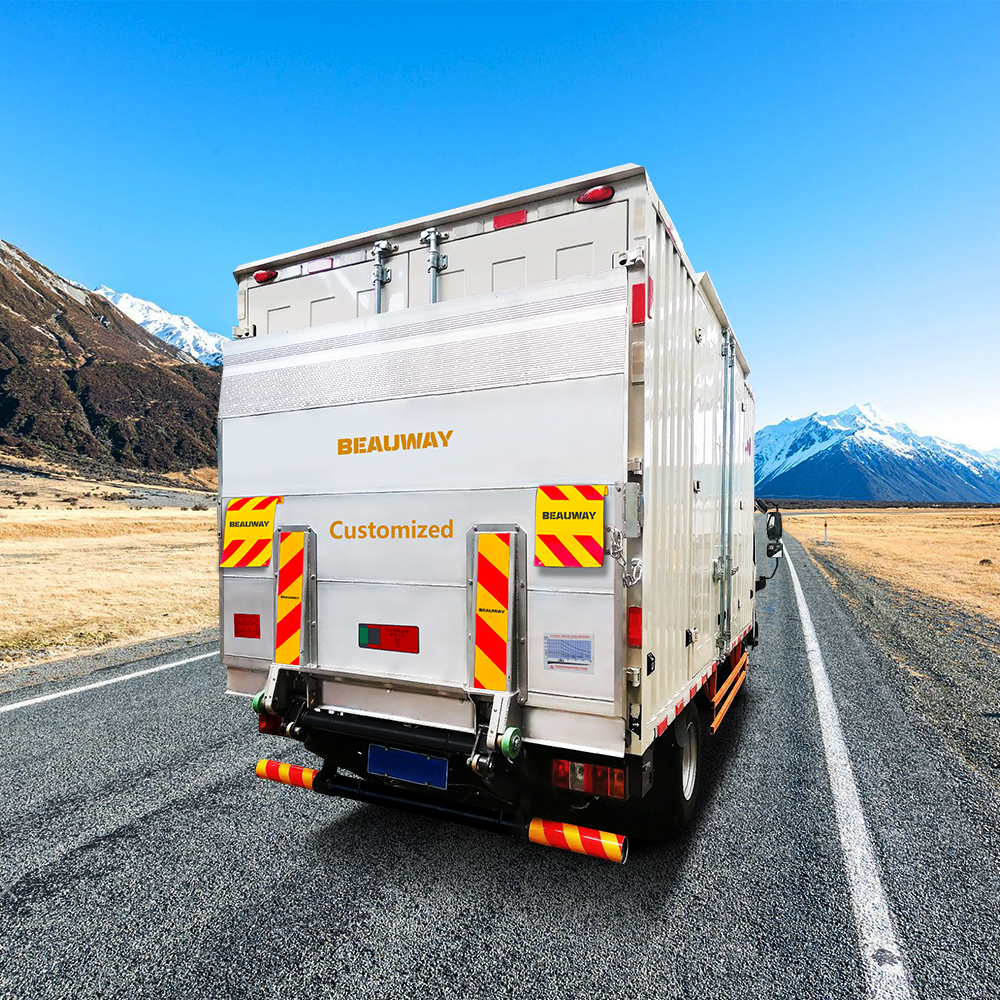

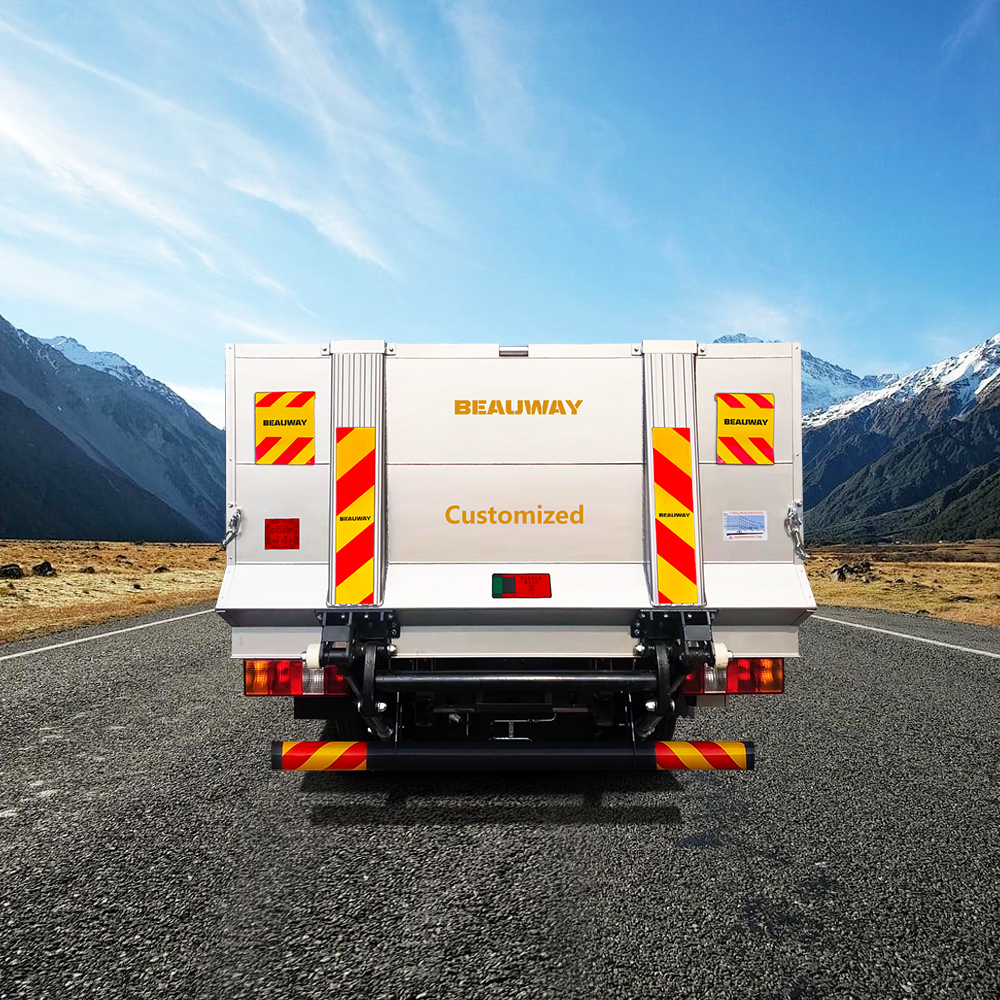

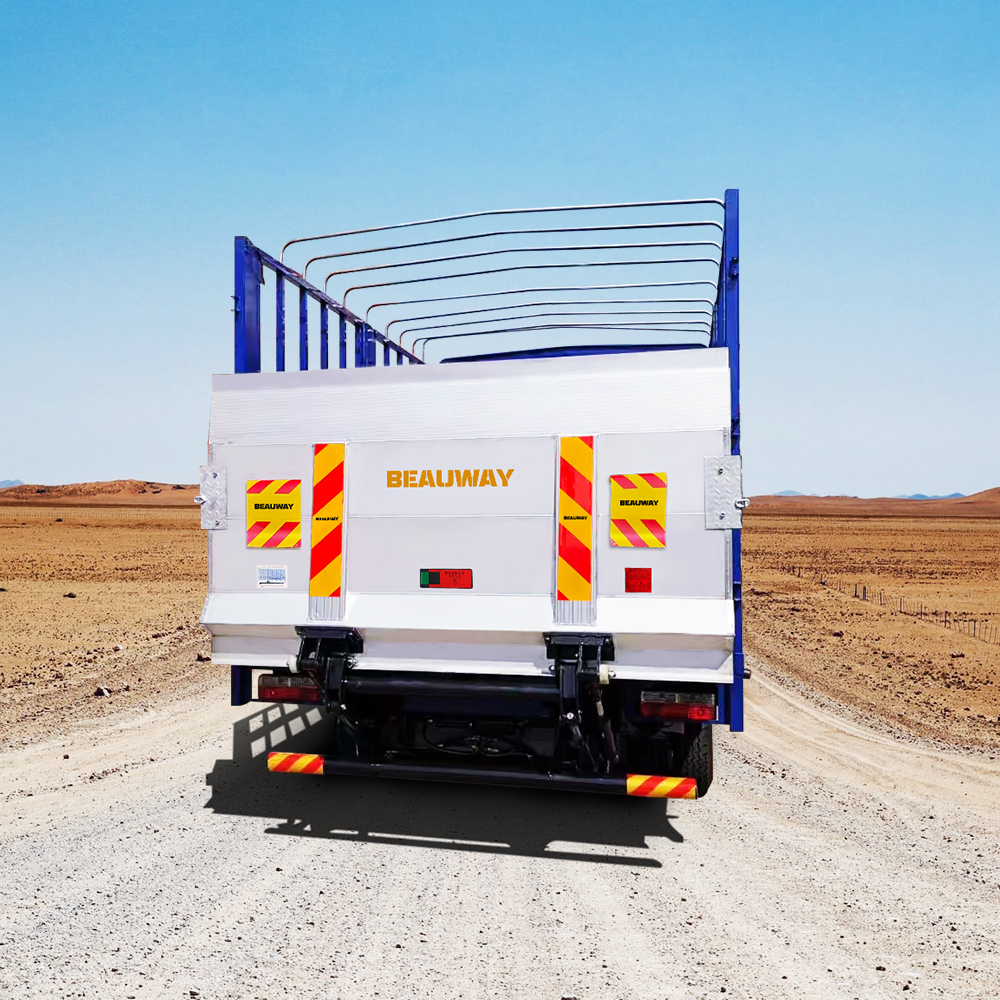

TAIL LIFT SHOWCASE
FAQs
What Is The Main Purpose Of Tail Lift?
Tail Lift Is Mainly Used To Assist In Loading And Unloading Heavy Or Large Cargo. With The Tail Lift, Operators Can Easily Lift Cargo From The Ground To The Carriage, Or Lower Cargo From The Carriage To The Ground, Greatly Improving Loading And Unloading Efficiency And Reducing Labor.
What Types Of Tail Lifts Are There?
There are several types of tail lifts, including Cantilever Tail Lift, Folding Tail Lift, Retractable Tail Lift, Vertical Tail Lift, Tuckaway Tail Lift, and Three-Section Bumper Tail Lift, designed for different trucks and loading needs.
How To Choose A Suitable Tail Lift?
Vehicle Type: Different Types And Sizes Of Tail Lifts Are Suitable For Different Models.
Loading Requirements: Choose A Tail Lift With Appropriate Load Capacity According To The Weight Of The Cargo.
Frequency Of Use: It Is Recommended To Choose A Tail Lift With Higher Durability For Frequent Use.
Convenience Of Operation: Choose A Tail Lift That Is Simple To Operate And Easy To Maintain.
What Is The General Load Capacity Of A Tail Lift?
The Load Capacity Of A Tail Lift Varies According To The Model And Purpose, Generally Ranging From Several Hundred Kilograms To Several Tons. When Choosing A Tail Lift, Ensure That Its Load Capacity Meets Actual Needs To Ensure Safety And Stability.
Is The Installation And Maintenance Of The Tail Lift Complicated?
The Installation Of The Tail Lift Usually Requires Professional Technicians To Ensure Its Safe And Reliable Working Condition. In Terms Of Maintenance, Regularly Check The Hydraulic System, Electrical System And Mechanical Parts To Ensure Their Normal Operation And Replace Worn Parts In Time.
