Beauway BW-GT-Y10 Hydraulic Dock Leveler
PRODUCT PARAMETERS
Description
TAIL LIFT OVERVIEW

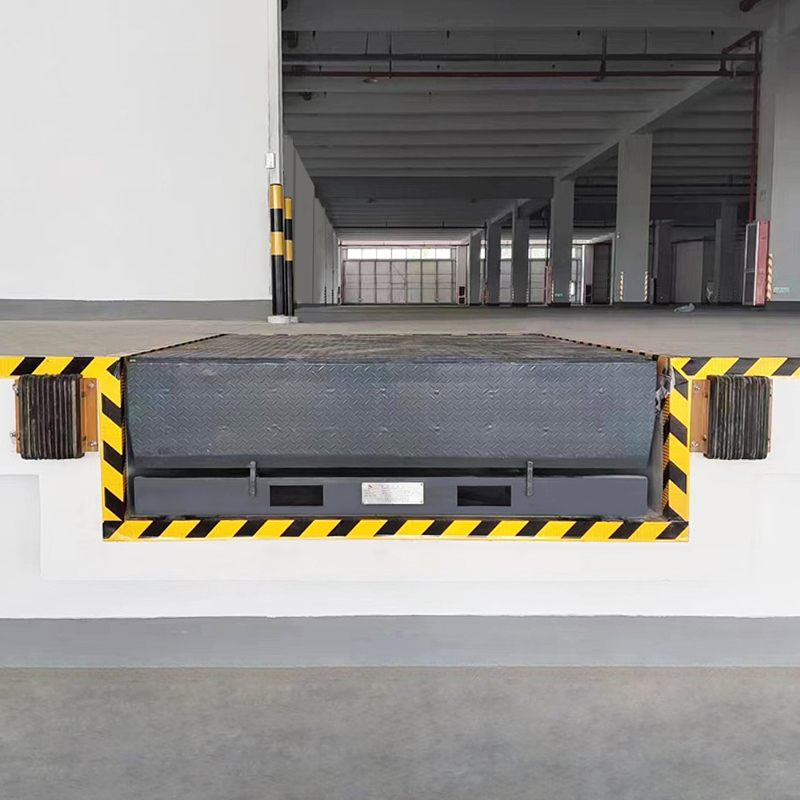

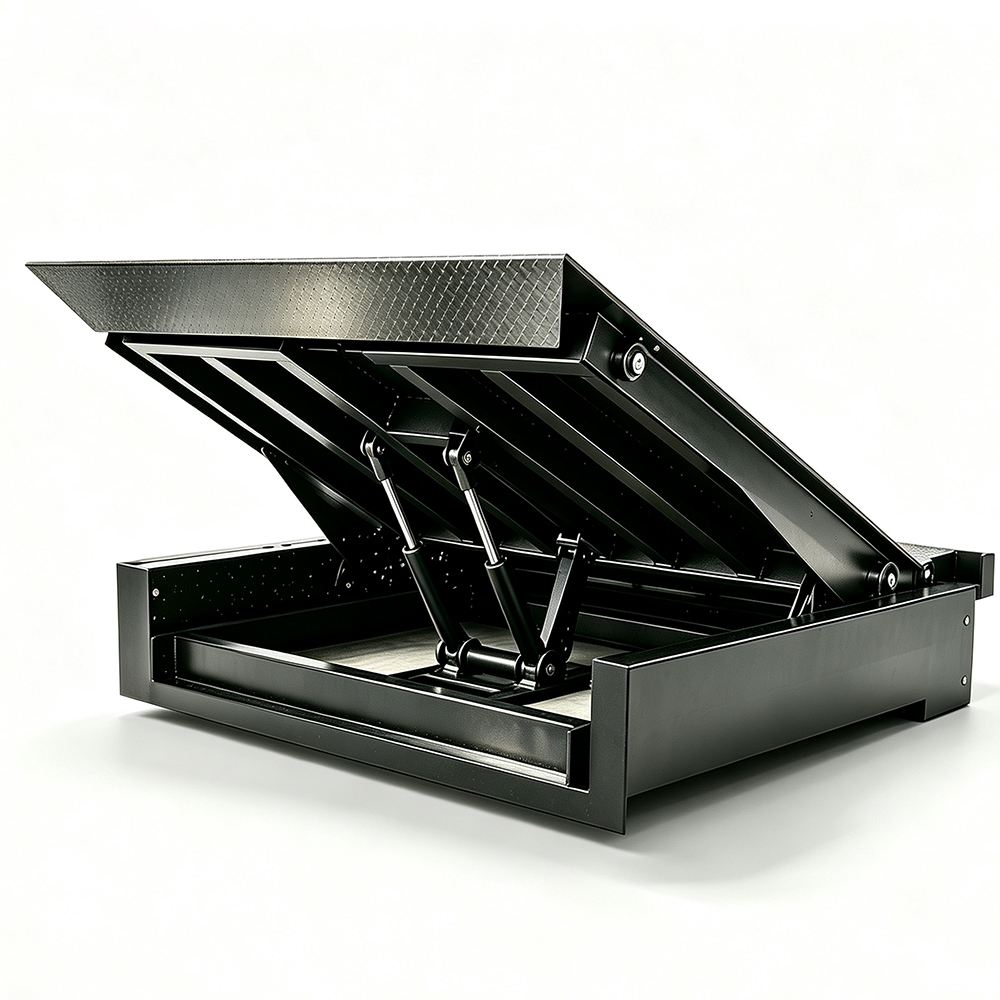

The Beauway BW-GT-Y10 is a pit-mounted hydraulic dock leveler engineered for controlled height compensation between warehouse loading docks and transport vehicles. Unlike mechanical alternatives, this hydraulic dock leveler delivers smooth, powered platform adjustment — minimizing manual effort and reducing forklift impact stress across high-cycle operations.

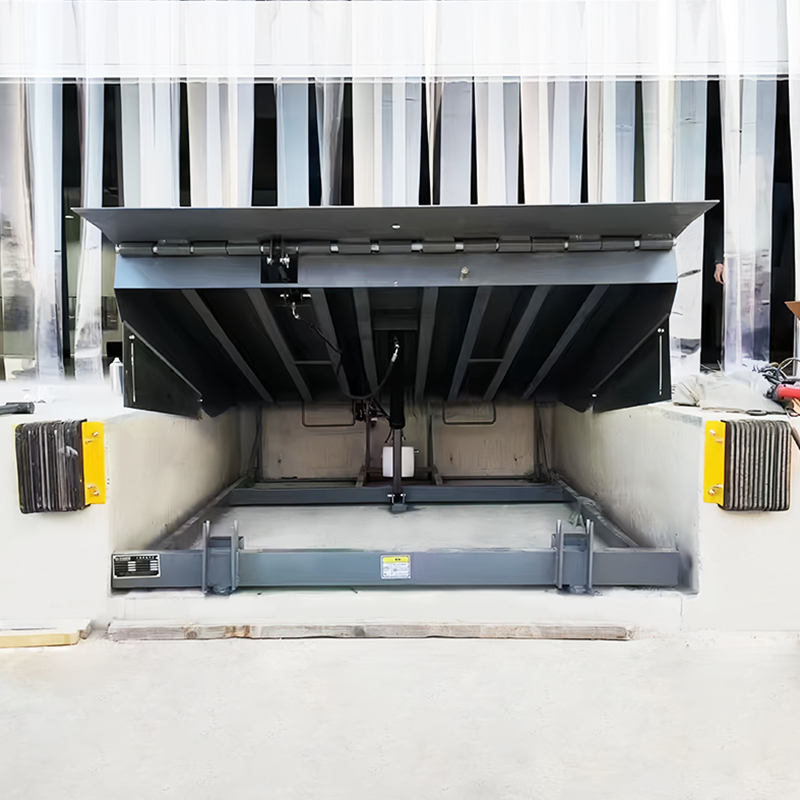

As a permanently installed fixed loading ramp solution, the BW-GT-Y10 integrates directly into dock pit infrastructure — eliminating the instability and repositioning downtime associated with portable ramp alternatives. This fixed loading ramp design supports forklift entry loads up to 10,000 kg static capacity, making it suitable for freight distribution centers, cold storage facilities, e-commerce fulfillment hubs, and port cargo terminals.
The platform assembly features an 8 mm checkered deck plate and 14 mm reinforced lip extension, engineered to withstand sustained dynamic loads up to 6,000 kg. The integrated 0.75 kW hydraulic power unit operates on 220V or 380V AC (50 Hz standard, 60 Hz optional), providing a working stroke of +400 mm / -300 mm to accommodate standard dock-to-trailer height variation across warehouse loading bay environments.
Available in three platform widths — 1830 mm, 1980 mm, and 2130 mm — this hydraulic dock leveler fits standard pit installations with dock face heights of 1200–1300 mm. The 6×8 ft (1830×2430 mm) configuration suits the majority of semi-trailer and box truck docking alignments without structural modification.
Each Beauway hydraulic dock leveler and fixed loading ramp unit undergoes full-load pressure testing and anti-corrosion surface treatment prior to shipment. Custom platform dimensions, stroke configurations, and OEM / private-label programs are available for project procurement and qualified distributor partnerships.
TECHNICAL SPECIFICATIONS
| Model | Feet | Closed Dimensions: Length (L) x Width (B) x Height (H) mm | Adjustment Range mm |
|---|---|---|---|
| BW-GT-Y10/6X6 | 6×6 | 1680 × 1830 × 490 | Up +300 / Down -300 |
| BW-GT-Y10/6X8 | 6×8 | 2280 × 1830 × 490 | Up +350 / Down -300 |
| BW-GT-Y10/6X10 | 6×10 | 2880 × 1830 × 490 | Up +450 / Down -300 |
| BW-GT-Y10/6X12 | 6×12 | 3480 × 1830 × 490 | Up +550 / Down -250 |
| BW-GT-Y10/6.5X6 | 6.5×6 | 1680 × 1980 × 490 | Up +300 / Down -300 |
| BW-GT-Y10/6.5X8 | 6.5×8 | 2280 × 1980 × 490 | Up +350 / Down -300 |
| BW-GT-Y10/6.5X10 | 6.5×10 | 2880 × 1980 × 490 | Up +450 / Down -300 |
| BW-GT-Y10/7×6 | 7×6 | 1680 × 2130 × 490 | Up +300 / Down -300 |
| BW-GT-Y10/7×8 | 7×8 | 2280 × 2130 × 490 | Up +350 / Down -300 |
| BW-GT-Y10/7×10 | 7×10 | 2880 × 2130 × 490 | Up +450 / Down -300 |
TAIL LIFT SHOWCASE
FAQs
What Is The Main Purpose Of Tail Lift?
Tail Lift Is Mainly Used To Assist In Loading And Unloading Heavy Or Large Cargo. With The Tail Lift, Operators Can Easily Lift Cargo From The Ground To The Carriage, Or Lower Cargo From The Carriage To The Ground, Greatly Improving Loading And Unloading Efficiency And Reducing Labor.
What Types Of Tail Lifts Are There?
There are several types of tail lifts, including Cantilever Tail Lift, Folding Tail Lift, Retractable Tail Lift, Vertical Tail Lift, Tuckaway Tail Lift, and Three-Section Bumper Tail Lift, designed for different trucks and loading needs.
How To Choose A Suitable Tail Lift?
Vehicle Type: Different Types And Sizes Of Tail Lifts Are Suitable For Different Models.
Loading Requirements: Choose A Tail Lift With Appropriate Load Capacity According To The Weight Of The Cargo.
Frequency Of Use: It Is Recommended To Choose A Tail Lift With Higher Durability For Frequent Use.
Convenience Of Operation: Choose A Tail Lift That Is Simple To Operate And Easy To Maintain.
What Is The General Load Capacity Of A Tail Lift?
The Load Capacity Of A Tail Lift Varies According To The Model And Purpose, Generally Ranging From Several Hundred Kilograms To Several Tons. When Choosing A Tail Lift, Ensure That Its Load Capacity Meets Actual Needs To Ensure Safety And Stability.
Is The Installation And Maintenance Of The Tail Lift Complicated?
The Installation Of The Tail Lift Usually Requires Professional Technicians To Ensure Its Safe And Reliable Working Condition. In Terms Of Maintenance, Regularly Check The Hydraulic System, Electrical System And Mechanical Parts To Ensure Their Normal Operation And Replace Worn Parts In Time.
