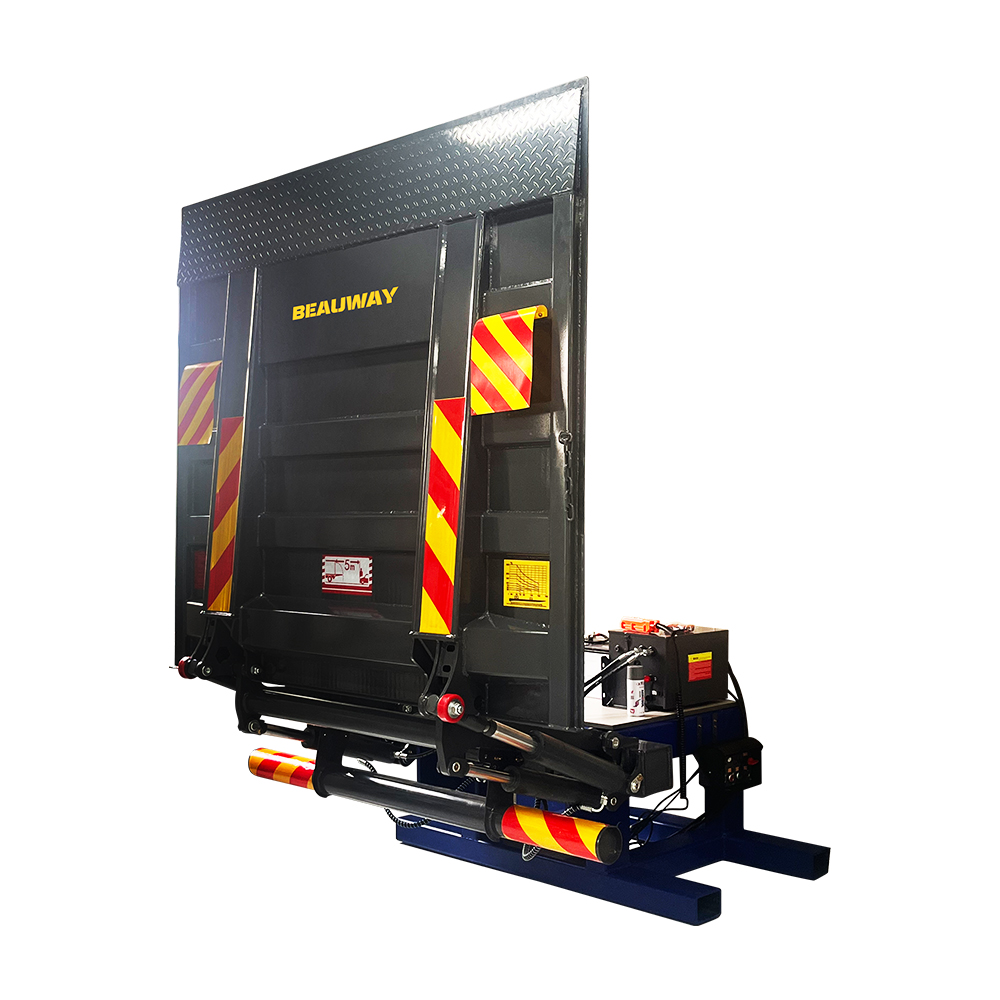

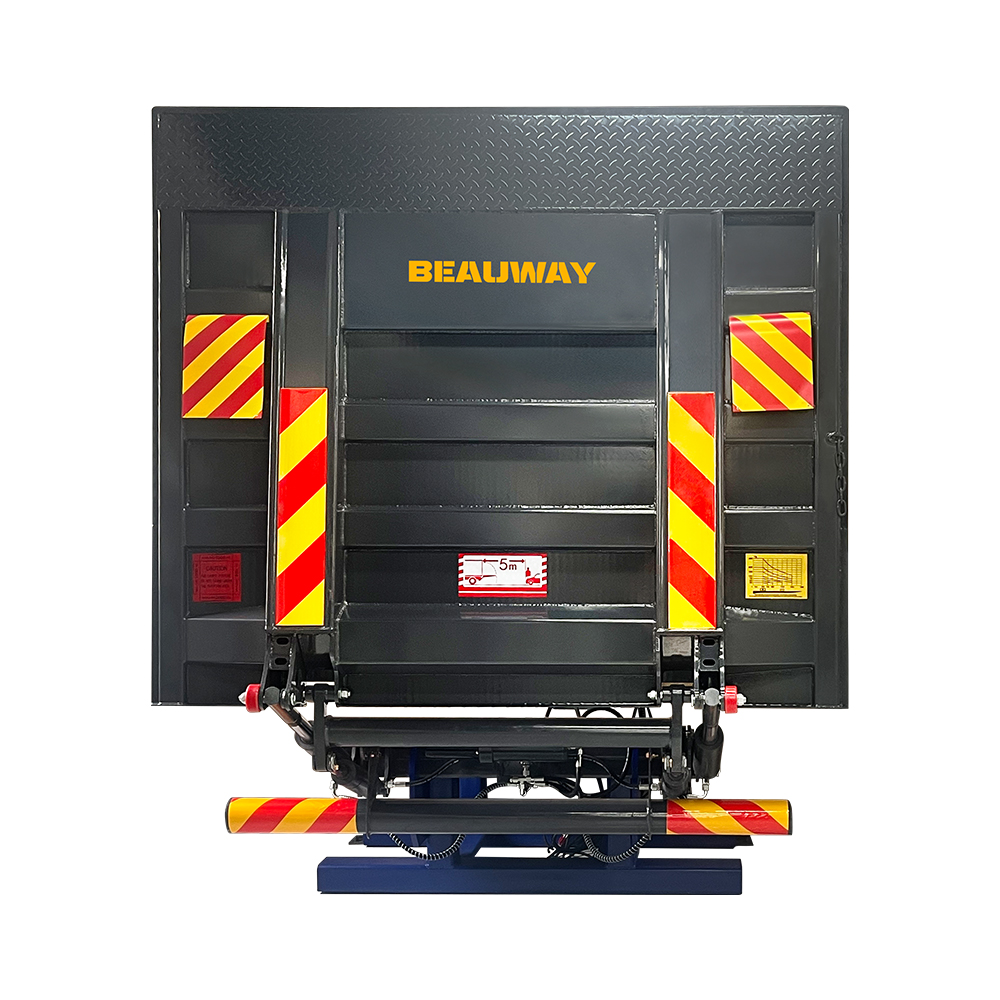

Beauway 1000kg Steel Plate Hydraulic Cantilever Tail Lift
PRODUCT PARAMETERS
Description
TAIL LIFT OVERVIEW
The Beauway 1000kg cantilever tail lift with a reinforced steel platform is designed for freight trucks, distribution vehicles, and logistics transport fleets that require efficient cargo loading equipment. This hydraulic cantilever tail lift supports a lifting capacity of up to 1000kg, making it suitable for warehouse distribution, urban delivery operations, and industrial cargo transport. The durable steel platform structure provides strong resistance to wear and heavy use, ensuring stable performance in demanding logistics environments.
Cantilever lifts are widely applied in commercial vehicle cargo handling because the cantilever structure allows stable lifting while maintaining full access to the rear cargo area. The Beauway hydraulic tail lift operates through a reliable electro-hydraulic system and supports both 12V and 24V vehicle power supplies, enabling smooth platform lifting, lowering, and tilting during loading operations. This truck tail lift improves operational efficiency and helps reduce manual handling during cargo transfer between ground level and vehicle floor height.
This cantilever tail lift is commonly used for logistics fleets, cold chain transport vehicles, retail distribution trucks, and industrial delivery vehicles. The reinforced steel platform provides long-term durability during high-frequency loading cycles, making it an efficient cargo loading solution for modern transport and distribution operations.
TECHNICAL SPECIFICATIONS
| Parameter | BW-PP10-105 | BW-PP10-130 |
|---|---|---|
| Platform Size | H1600-1800 W1800-2500 (customizable) | H1600-1800 W1800-2500 (customizable) |
| Load Capacity | 1000KG | 1000KG |
| Power Supply | 12/24V | 12/24V |
| Working Pressure | 16-18 MPa | 16-18 MPa |
| Lifting Height (mm) | 700-1000 | 950-1200 |
| Frame Model | 600 | 700 |
| Total Weight (kg) | 400KG | 400KG |

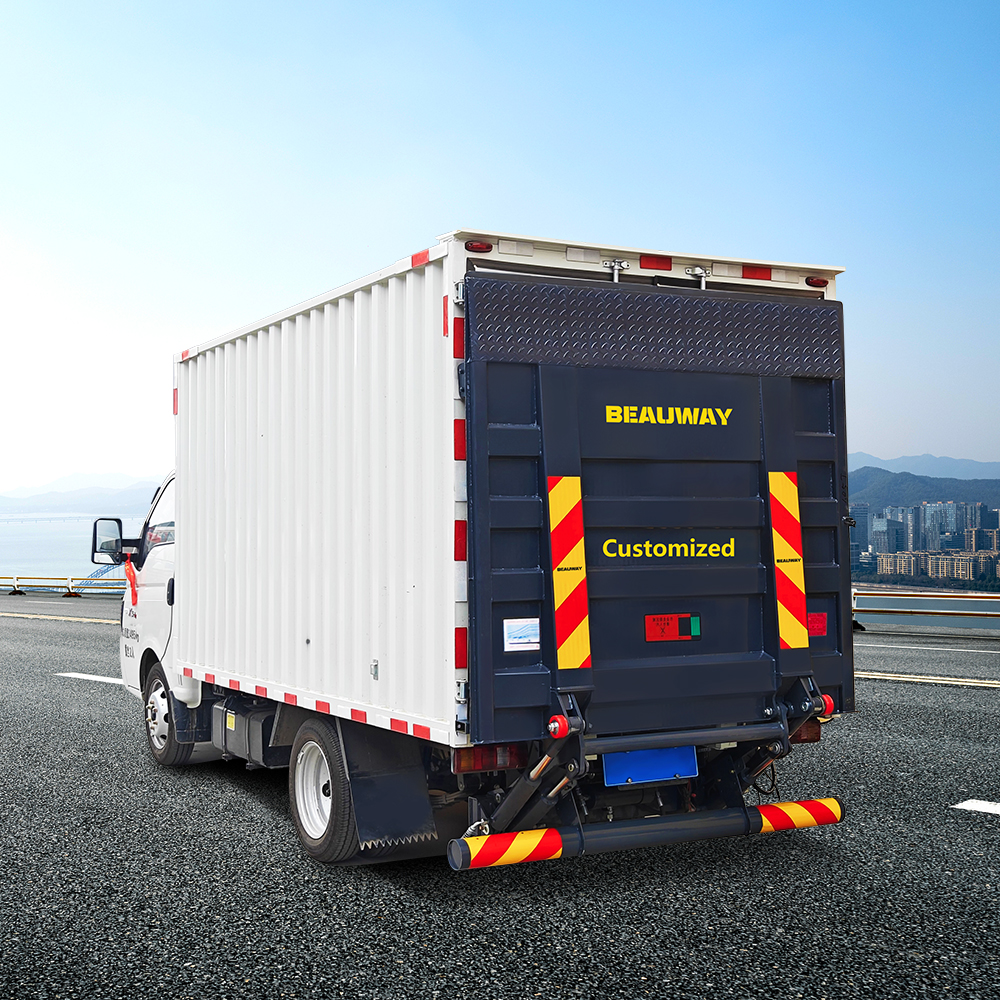

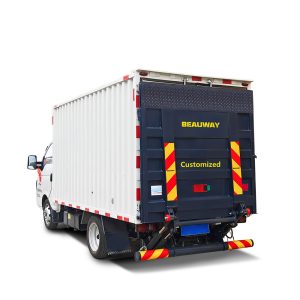

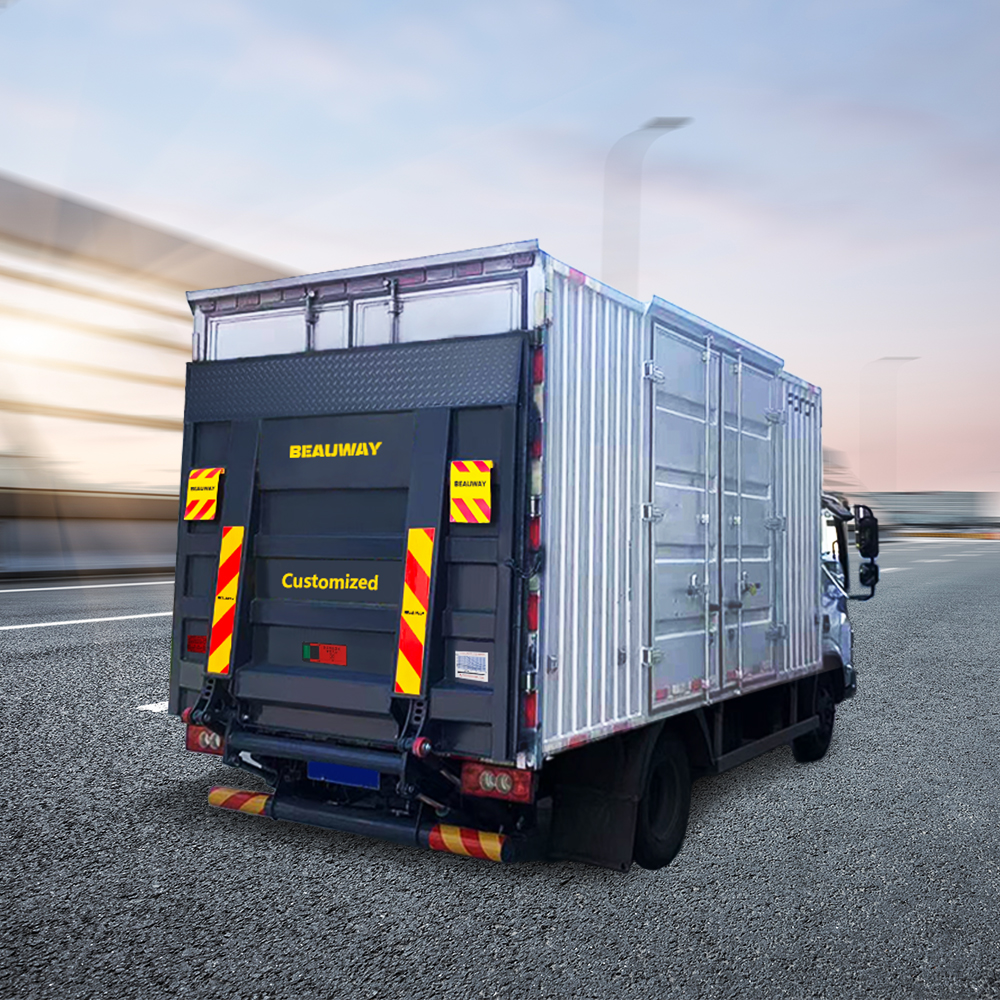

TAIL LIFT SHOWCASE
FAQs
What Is The Main Purpose Of Tail Lift?
Tail Lift Is Mainly Used To Assist In Loading And Unloading Heavy Or Large Cargo. With The Tail Lift, Operators Can Easily Lift Cargo From The Ground To The Carriage, Or Lower Cargo From The Carriage To The Ground, Greatly Improving Loading And Unloading Efficiency And Reducing Labor.
What Types Of Tail Lifts Are There?
There are several types of tail lifts, including Cantilever Tail Lift, Folding Tail Lift, Retractable Tail Lift, Vertical Tail Lift, Tuckaway Tail Lift, and Three-Section Bumper Tail Lift, designed for different trucks and loading needs.
How To Choose A Suitable Tail Lift?
Vehicle Type: Different Types And Sizes Of Tail Lifts Are Suitable For Different Models.
Loading Requirements: Choose A Tail Lift With Appropriate Load Capacity According To The Weight Of The Cargo.
Frequency Of Use: It Is Recommended To Choose A Tail Lift With Higher Durability For Frequent Use.
Convenience Of Operation: Choose A Tail Lift That Is Simple To Operate And Easy To Maintain.
What Is The General Load Capacity Of A Tail Lift?
The Load Capacity Of A Tail Lift Varies According To The Model And Purpose, Generally Ranging From Several Hundred Kilograms To Several Tons. When Choosing A Tail Lift, Ensure That Its Load Capacity Meets Actual Needs To Ensure Safety And Stability.
Is The Installation And Maintenance Of The Tail Lift Complicated?
The Installation Of The Tail Lift Usually Requires Professional Technicians To Ensure Its Safe And Reliable Working Condition. In Terms Of Maintenance, Regularly Check The Hydraulic System, Electrical System And Mechanical Parts To Ensure Their Normal Operation And Replace Worn Parts In Time.
