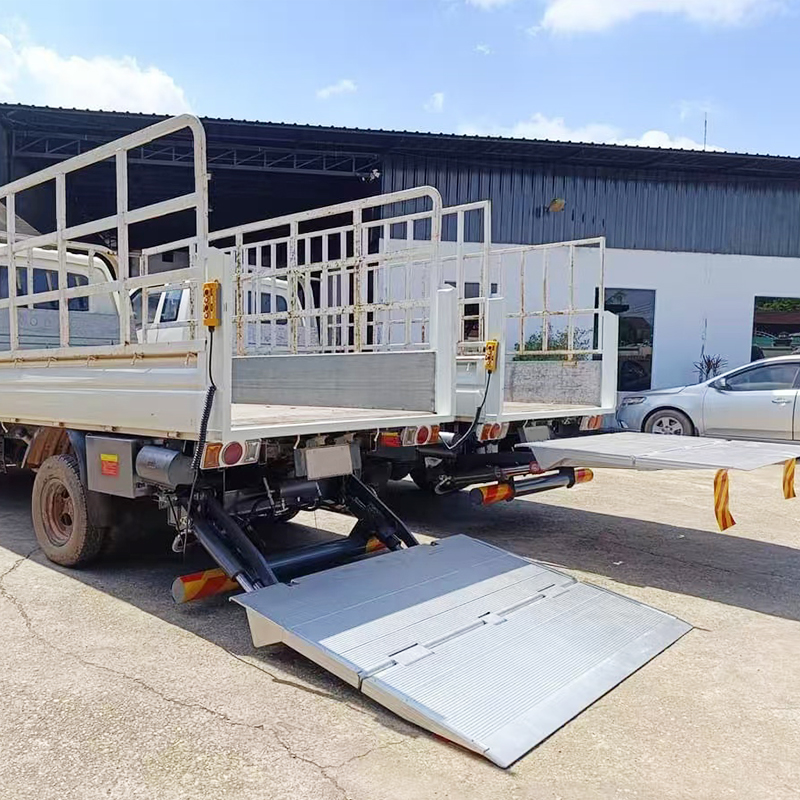

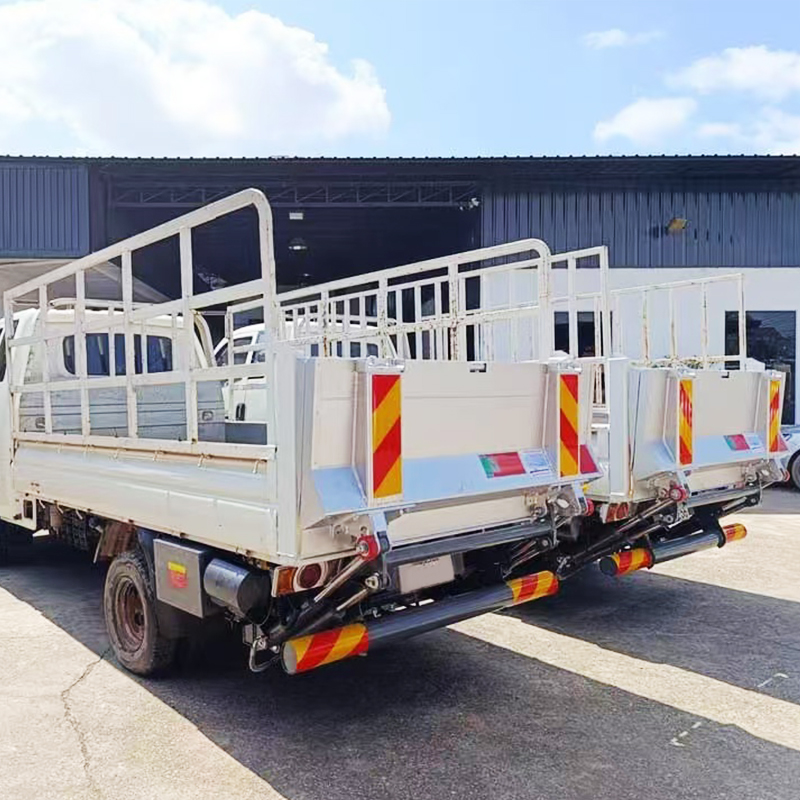

Beauway Aluminum Folding Hydraulic Tail Lift 500kg
PRODUCT PARAMETERS
- Product Type: Folding Hydraulic Tail Lift
- Model Numbers: BW-PP05-085, BW-PP05-095, BW-PP05-130
- Load Capacity: 500kg
- Platform Dimensions: H1600-1800mm W1800-2100mm
- Platform Material: Aluminum
- Power Supply Voltage: 12V
- Motor Power: 1.2kW
CERTIFICATIONS
Description
TAIL LIFT OVERVIEW
The Beauway 500kg Aluminum Folding Hydraulic Tail Lift provides efficient lifting solutions for compact cargo vehicles, ensuring secure handling of small to medium-sized loads. Constructed with a lightweight aluminum platform, it reduces vehicle strain while maintaining high durability and operational reliability. This tail lift is ideal for delivery vans, light trucks, and other urban logistics vehicles.
Its foldable design allows the platform to retract quickly when not in use, saving valuable space and facilitating easy deployment. The corrosion-resistant aluminum construction guarantees long-term performance with minimal maintenance. The 12V hydraulic system paired with a 1.2kW motor ensures smooth and controlled lifting, improving workflow efficiency and safeguarding cargo during frequent loading and unloading tasks.
Optimized for logistics, warehouse operations, and retail deliveries, this hydraulic tail lift adapts to multiple vehicle sizes through adjustable platform dimensions. Keywords such as “aluminum hydraulic lift for vans,” “compact folding cargo platform,” and “light-duty industrial tail lift” are naturally incorporated to enhance search visibility while keeping the text readable and professional.
TECHNICAL SPECIFICATIONS
| Parameter | BW-PP05-085 | BW-PP05-095 | BW-PP05-130 |
|---|---|---|---|
| Platform Size | H1600-1800 W1800-2100 (customizable) | H1600-1800 W1800-2100 (customizable) | H1600-1800 W1800-2100 (customizable) |
| Load Capacity | 500KG | 500KG | 500KG |
| Power Supply | 12V | 12V | 12V |
| Working Pressure | 16-18 MPa | 16-18 MPa | 16-18 MPa |
| Lifting Height (mm) | 600-820 | 700-850 | 850-1100 |
| Frame Model | 530 | 580 | 700 |
| Total Weight (kg) | 350KG | 350KG | 350KG |
TAIL LIFT SHOWCASE
