Beauway Steel Plate Concealed Hydraulic Tail Lift 2000kg
PRODUCT PARAMETERS
Description
TAIL LIFT OVERVIEW
The Beauway concealed hydraulic tail lift, also referred to as a retractable tail lift or hidden tail lift, is engineered for demanding cargo handling operations requiring installation beneath the vehicle chassis. Designed as an underbody tail lift system, this lifting solution integrates a reinforced steel plate platform and a stable hydraulic lifting mechanism to provide controlled vertical movement and reliable cargo transfer for trucks, logistics vehicles, and commercial transport fleets.
The integrated steel platform structure delivers strong load-bearing capability during frequent loading cycles, while the underbody concealed installation allows the lifting platform to remain hidden beneath the vehicle when not in use. This configuration preserves the external appearance of the truck while maximizing rear cargo access efficiency. Such systems are widely used as concealed tail lift equipment, hidden truck cargo platforms, underbody loading lifts, and integrated vehicle cargo lifting mechanisms within logistics fleets, commercial delivery trucks, and industrial transportation operations.
Supporting platform dimensions ranging from 1800×2100 mm to 1800×2500 mm, the Beauway concealed lifting platform adapts to multiple truck body configurations and transport requirements. The hydraulic system supports lifting capacities of 1000 kg, 1500 kg, and 2000 kg, powered by either 12V 2KW or 24V 3KW hydraulic power units. This configuration ensures stable lifting performance for retractable tail lift equipment, heavy-duty concealed cargo lift platforms, vehicle-mounted hidden lifting systems, rear cargo loading integration solutions, and truck-mounted hydraulic cargo handling equipment used in warehouse distribution, freight transport, and commercial logistics applications.
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Load Capacity | 1000KG / 1500KG / 2000KG |
| Platform Size (mm) | 1800×2100 / 2200 / 2300 / 2400 / 2500 (customizable) |
| Voltage | 12V, 2KW / 24V, 3KW |
| Platform Material | Steel |
| Total Weight (kg) | 350–400 (customizable) |

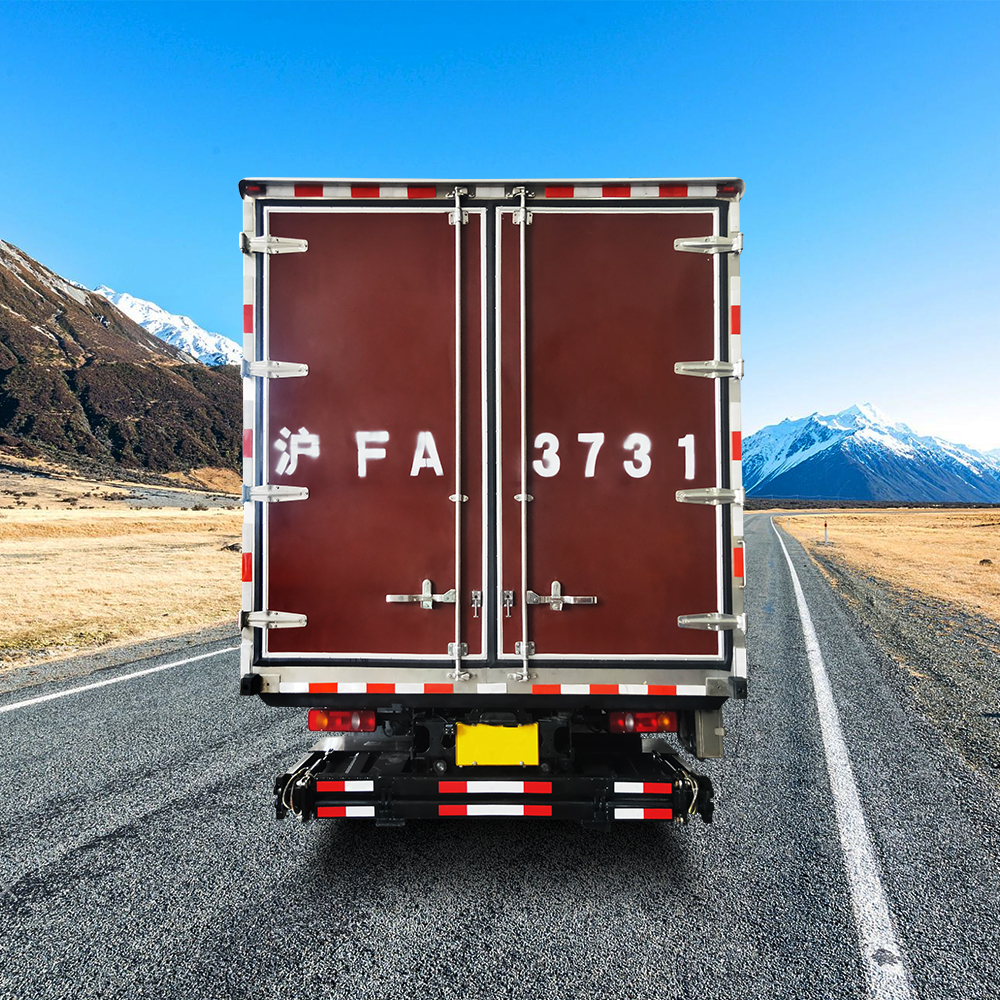

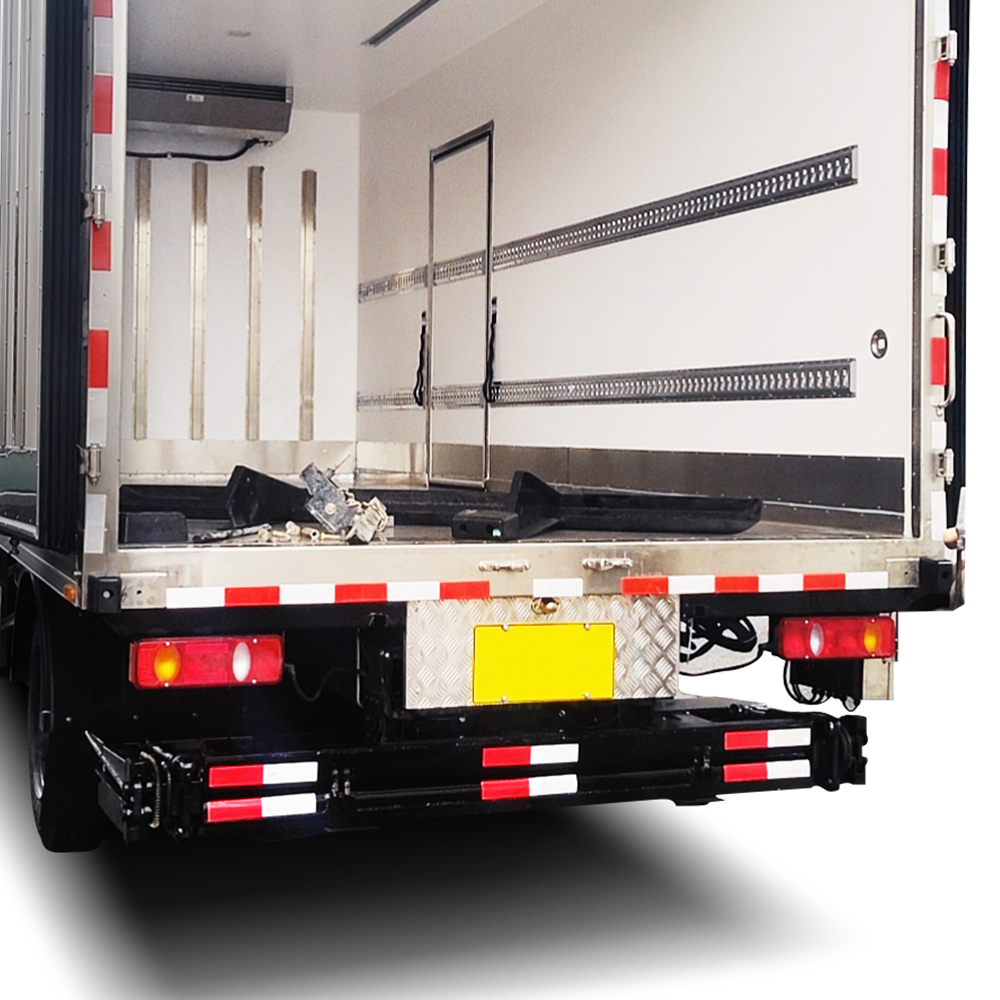

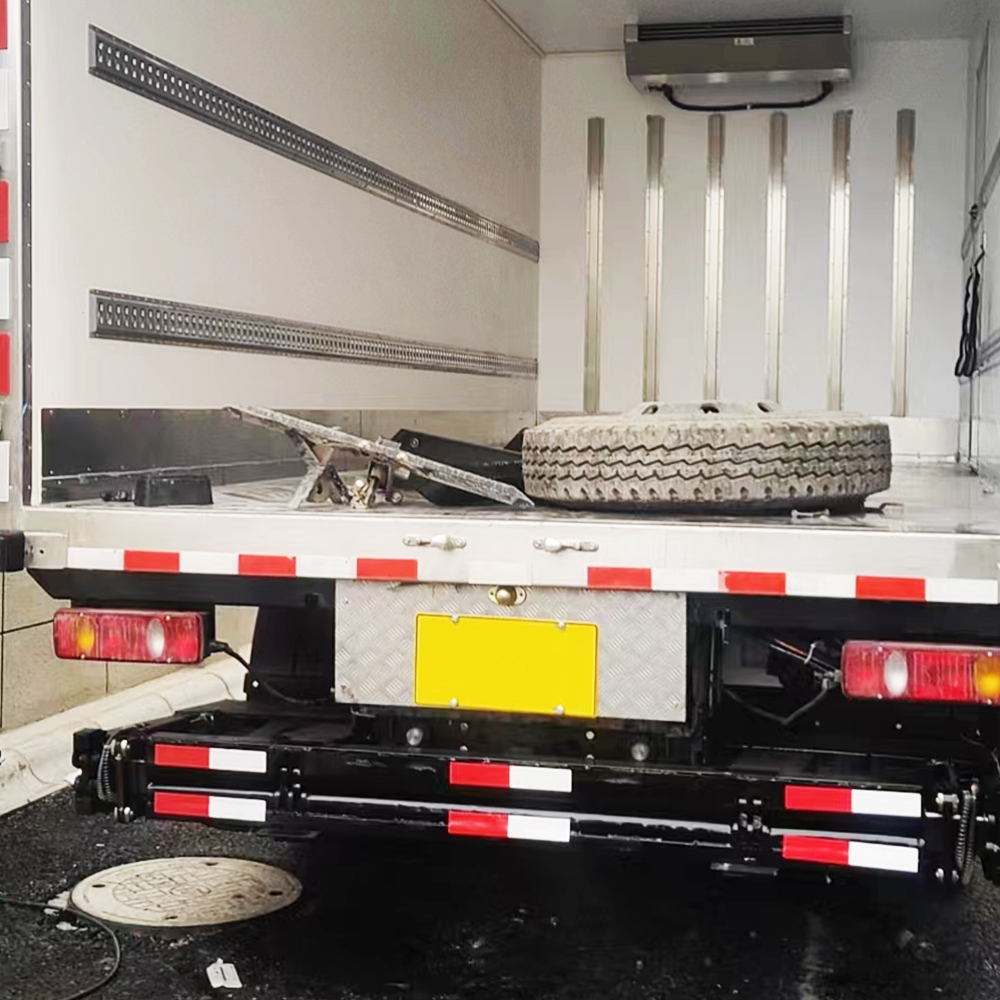

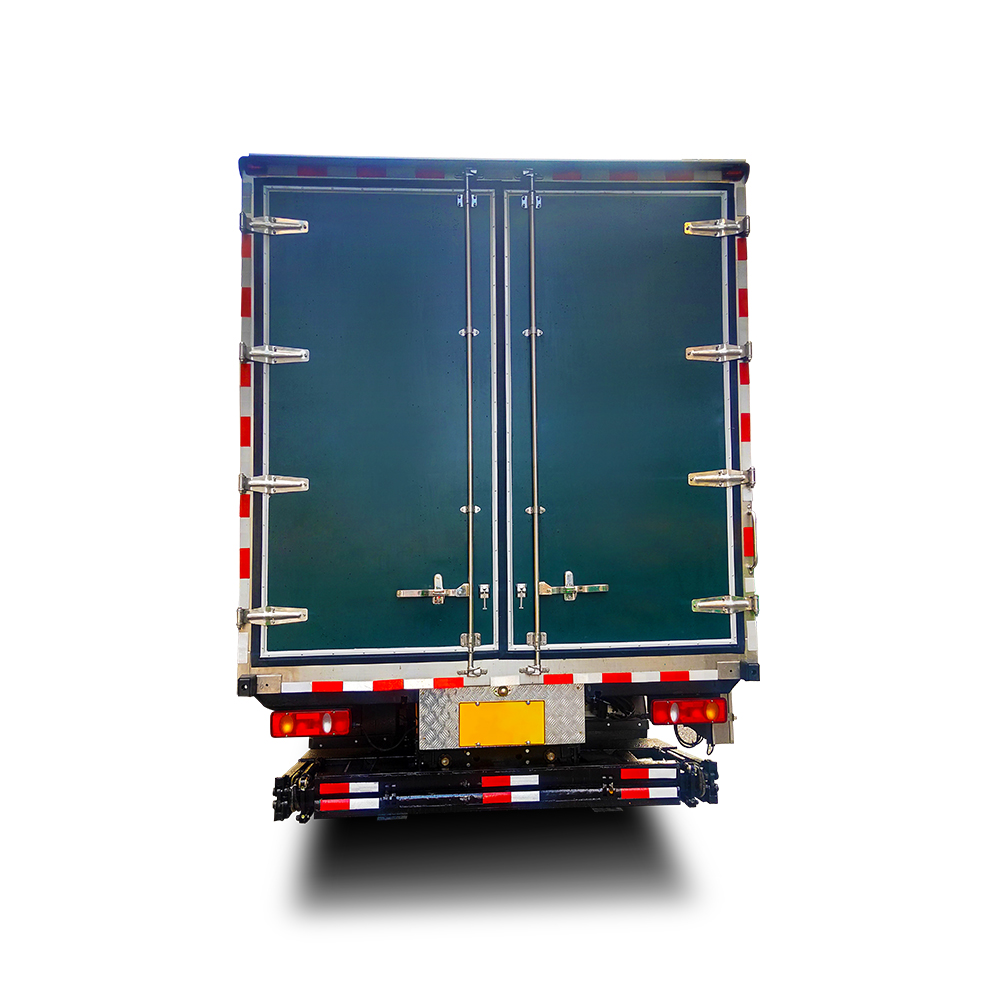

TAIL LIFT SHOWCASE
FAQs
What Is The Main Purpose Of Tail Lift?
Tail Lift Is Mainly Used To Assist In Loading And Unloading Heavy Or Large Cargo. With The Tail Lift, Operators Can Easily Lift Cargo From The Ground To The Carriage, Or Lower Cargo From The Carriage To The Ground, Greatly Improving Loading And Unloading Efficiency And Reducing Labor.
What Types Of Tail Lifts Are There?
There are several types of tail lifts, including Cantilever Tail Lift, Folding Tail Lift, Retractable Tail Lift, Vertical Tail Lift, Tuckaway Tail Lift, and Three-Section Bumper Tail Lift, designed for different trucks and loading needs.
How To Choose A Suitable Tail Lift?
Vehicle Type: Different Types And Sizes Of Tail Lifts Are Suitable For Different Models.
Loading Requirements: Choose A Tail Lift With Appropriate Load Capacity According To The Weight Of The Cargo.
Frequency Of Use: It Is Recommended To Choose A Tail Lift With Higher Durability For Frequent Use.
Convenience Of Operation: Choose A Tail Lift That Is Simple To Operate And Easy To Maintain.
What Is The General Load Capacity Of A Tail Lift?
The Load Capacity Of A Tail Lift Varies According To The Model And Purpose, Generally Ranging From Several Hundred Kilograms To Several Tons. When Choosing A Tail Lift, Ensure That Its Load Capacity Meets Actual Needs To Ensure Safety And Stability.
Is The Installation And Maintenance Of The Tail Lift Complicated?
The Installation Of The Tail Lift Usually Requires Professional Technicians To Ensure Its Safe And Reliable Working Condition. In Terms Of Maintenance, Regularly Check The Hydraulic System, Electrical System And Mechanical Parts To Ensure Their Normal Operation And Replace Worn Parts In Time.
