Column Tail Lift: What It Is & When It Beats Cantilever or Folding

What a Column Tail Lift Actually Is

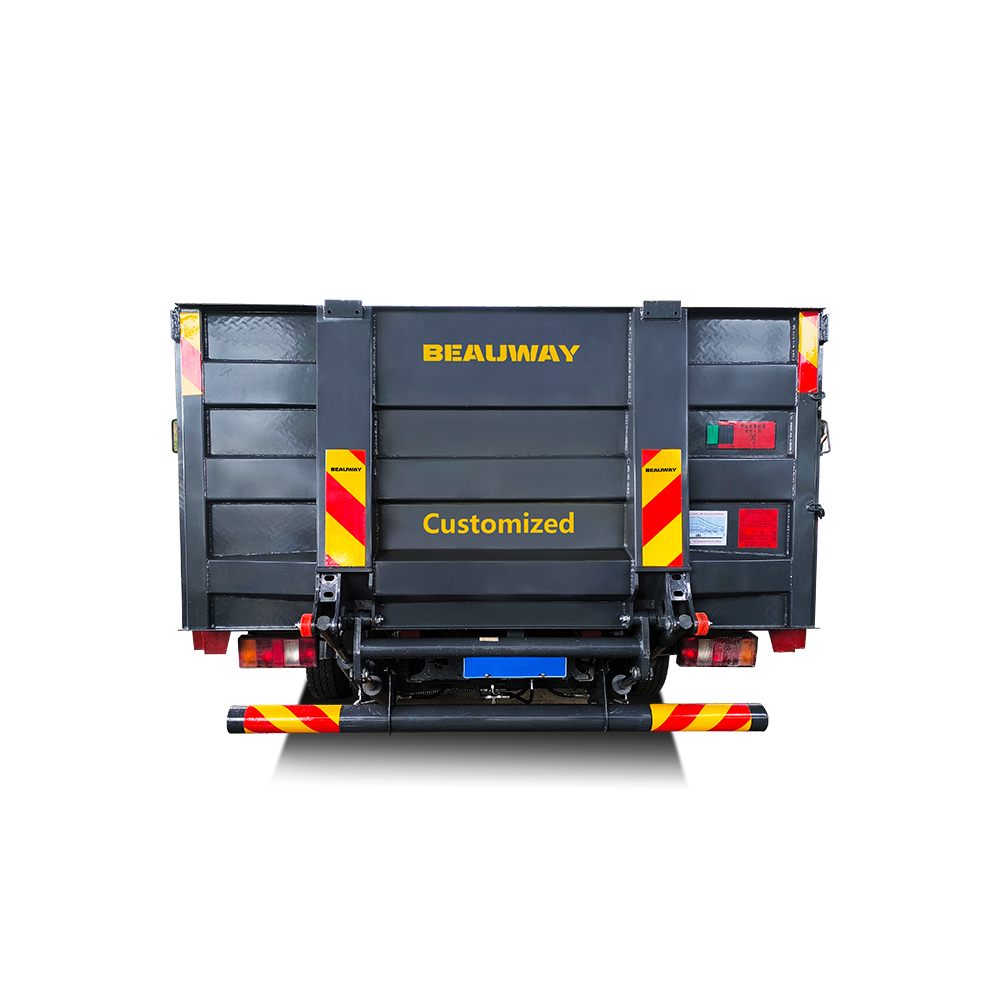

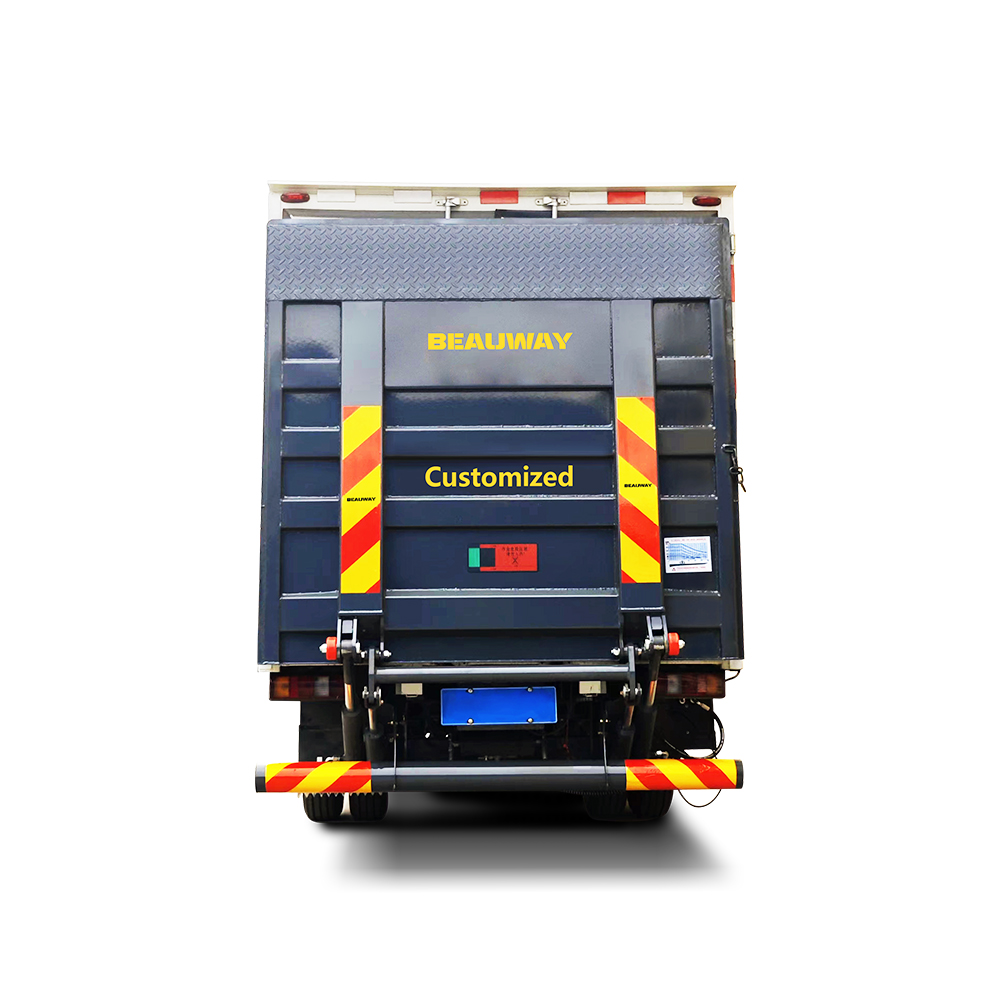

A column tail lift — also called a railgate in some markets — lifts the platform straight up and down along two fixed vertical rails bolted to the rear chassis. There’s no swinging arm and no folding hinge in the load path. Two hydraulic cylinders, one inside each rail, push a carriage that the platform is mounted to. Because both rails move together, the platform stays level the whole way up and down, instead of arcing through space like a cantilever does.

That single difference — straight vertical travel versus an arcing arm — is what the rest of this article comes down to. It’s also the reason a fleet manager loading loose stacked crates cares about column lifts specifically, rather than treating “tail lift” as one interchangeable category.

Direct Cylinder vs. Chain Drive

Column lifts split into two drive types, and the difference matters more than most buying guides admit.

Direct cylinder: the hydraulic cylinder pushes the carriage directly. Fewer moving parts, fewer wear points, and generally the cheaper option to maintain over time. The catch: the cylinder has to physically span the full lift height, so on taller cargo boxes the cylinder itself gets long and bulky.

Chain drive: a shorter cylinder drives a chain loop, and the chain moves the carriage. This lets a compact cylinder produce a long travel distance — the standard fix for tall load beds where a direct-cylinder unit simply wouldn’t fit. The trade-off is one more wear item: the chain needs periodic tension checks and lubrication, since it stretches slightly under repeated load cycles.

Practical rule of thumb: if the load bed height is under roughly 1.1–1.2 m off the ground, direct cylinder is usually the simpler and cheaper choice. Above that, most manufacturers default to chain drive — worth confirming the exact cutoff with whoever specs your build, since it varies by rail design.

Chassis and Installation Requirements

Because the rails carry the full vertical load, the chassis needs enough frame rigidity and mounting depth to take it. A cantilever unit, by comparison, hangs mostly off the rear bumper area and asks less of the frame.

This is the part general buying guides tend to oversimplify: column lifts are not automatically the easier retrofit. If a chassis doesn’t have adequate rigidity at the mounting points, adding a column lift can actually be more involved than fitting a cantilever, because the fixing points take a sustained vertical load that a lighter frame wasn’t built for. The practical fix is simple — get the chassis assessed at the specification stage, not on the day of installation, when a change order costs real time and money.

Rear door clearance is the other item worth checking before ordering. Vehicles with no rear doors have nothing to check — the column lift installs cleanly. On vehicles that keep rear doors, measure the gap between the door’s fully-open position and the rail mounting point. As a working benchmark, less than about 150 mm of clearance is where door-opening angle starts getting restricted enough to interfere with forklift access or wide pallets at the dock. Anything tighter than that, flag it before the build, not after.

Load Capacity by Vehicle Class

Rather than quoting a single capacity range, it’s more useful to think in bands tied to vehicle class, since that’s how most manufacturers spec them:

These are typical industry bands, not a guarantee for any specific model — always check the rated figure on the actual unit’s data plate before loading to a limit.

Where Column Lifts Win: Stability Under Off-Center Load

This is the strongest practical case for column lifts, and it’s worth being specific about why. A cantilever arm is a single beam under load — at full extension, with weight sitting off-center (a fridge pushed to one side of the platform, an appliance loaded diagonally), the beam can flex slightly. It’s a small amount of flex, but it’s enough to matter with fragile or top-heavy items.

A column lift’s carriage rides on two guided rails instead of one beam, so the load is shared across both rails rather than cantilevered off a single pivot point. In practice, this shows up most clearly in two scenarios:

• Furniture and appliance delivery, where large items rarely sit centered on the platform and the driver often can’t reposition them mid-lift.
• Mixed multi-drop loads, where stacked crates or boxes can shift if the platform isn’t staying level through the full cycle — a problem that tends to surface only after a few drops, once the stack has already been jostled.

If your routes involve mostly palletized, centered, uniform loads, this advantage matters much less, and a cantilever’s higher capacity and faster cycle time may be the better trade.

Column vs. Cantilever vs. Folding: Side by Side

When a Column Lift Is the Wrong Choice

Two situations where column isn’t the right call, regardless of the stability advantage:

Frequent underground parking or height-restricted access. A column lift’s rails and folded platform add to the vehicle’s rear profile in ways a tuck-under or folding design doesn’t. If a route regularly needs underground garage or low-clearance access, that clearance constraint usually outweighs the stability benefit.

Chassis that can’t support the mounting load, and no budget for reinforcement. If a chassis assessment comes back marginal, reinforcing it adds cost and installation time that can erase the column lift’s price advantage over a cantilever. In that case, a folding or cantilever unit — sized correctly — is often the more practical route.

The decision should come down to how often unstable or off-center loads actually happen on your routes, weighed against how often the vehicle needs low-clearance access. Neither factor should be assumed; both are worth a week of route observation before ordering.

Maintenance Schedule

• Daily, before first use of the shift: visual check of rails, platform, and safety locks.
• Weekly: no-load function test through the full lift cycle.
• Per manufacturer interval: hydraulic fluid level and condition check.
• Chain-driven units only: periodic chain tension and lubrication check — the chain stretches slightly over time under sustained load, and this is the item most often skipped on direct-cylinder maintenance checklists carried over by habit.

FAQ

Does a column lift always cost less to install than a cantilever? No — only when the chassis already has adequate mounting rigidity. If reinforcement is needed, the labor and parts can bring the total cost close to or above a cantilever installation.

Can a column lift be added to a vehicle that already has rear doors? Yes, but check the clearance between the fully-open door and the rail mounting point first. Under roughly 150 mm of clearance is where door opening angle typically becomes restricted.

Is chain drive better than direct cylinder? Neither is universally better — it’s a function of load bed height. Direct cylinder is simpler and cheaper to maintain on lower beds; chain drive is the practical choice once the bed is tall enough that a direct cylinder would need an impractical length.

How much load can shift on an off-center delivery before it becomes a real risk? There’s no fixed number — it depends on item weight, platform size, and how far off-center the load sits. As a working signal: if a load visibly shifts during a no-load test at even a slight tilt, it’s a sign the platform or lift type isn’t matched to that cargo.

What’s the single most-skipped maintenance item on column lifts? Chain tension checks on chain-driven units — teams that are used to maintaining direct-cylinder or cantilever lifts often carry over a checklist that doesn’t include it, and the chain stretches gradually enough that the slack isn’t obvious until cycle times start slowing down.
